Terex
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

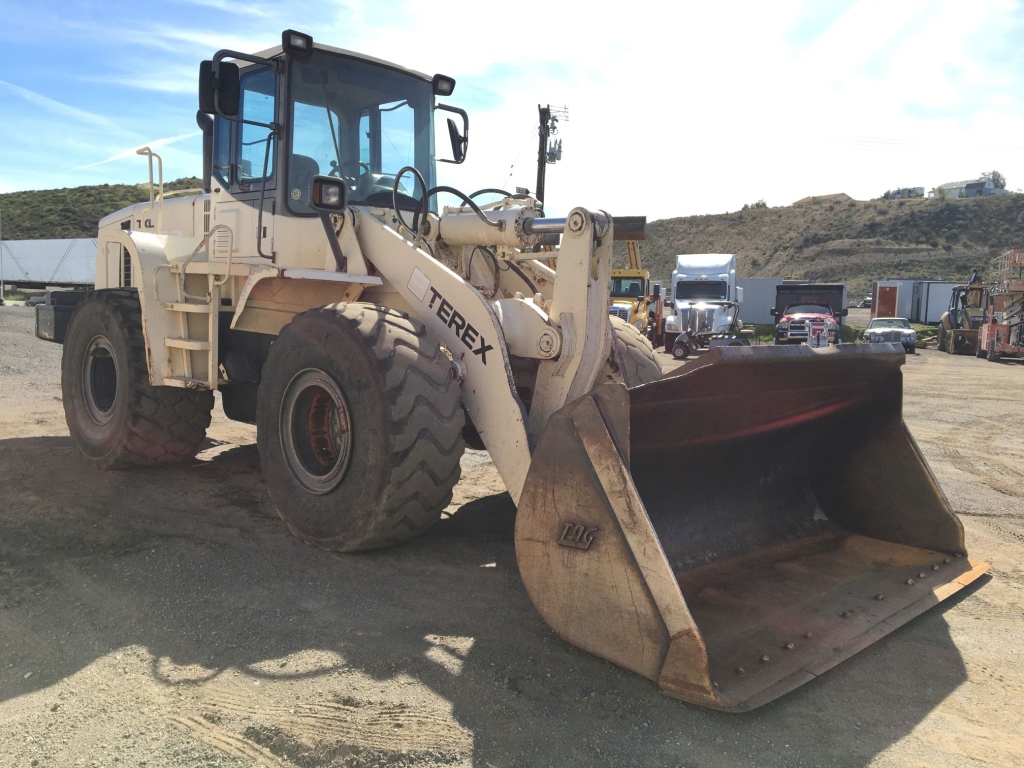

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 38,140 lb |
|---|---|
| Fuel Capacity | 87.2 gal |
| Tire Size | 23.5-25-16PR-L3 |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Static Tipping Weight | 31,967 lb |
| Operating Voltage | 24 V |
| Turning Radius | 229 in |
| Engine Oil Fluid Capacity | 9.3 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 10.1 gal |
| Rear Axle/Diff Fluid Capacity | 8.0 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 12.7 gal |
Engine
| Engine Model | DL08 |
|---|---|
| Displacement | 466 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 217.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 74.0 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 3.7 s |
| Dump Time | 1.9 s |
| Relief Valve Setting | 2,900 psi |
| Pump Type | tandem vane pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 126 in |
| Width Over Tires | 109 in |
| Reach at Max Lift and Dump | 52 in |
| Length with Bucket on Ground | 322 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 21.5 mph |
|---|---|
| Max Speed - Reverse | 14.8 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 52 in |
| Breakout Force | 36,419 lb |
| Bucket Width | 115 in |
