Terex
Tata Hitachi
TWL3036

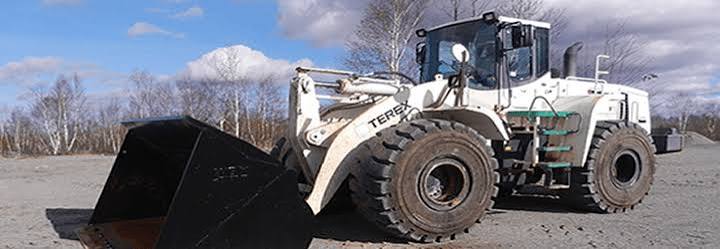

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 48,590 lb |
|---|---|
| Fuel Capacity | 96.2 gal |
| Tire Size | 26.5x25 |
| Hydraulic System Fluid Capacity | 70.1 gal |
| Static Tipping Weight | 39,683 lb |
| Operating Voltage | 24 V |
| Turning Radius | 275 in |
| Engine Oil Fluid Capacity | 6.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 20.9 gal |
| Rear Axle/Diff Fluid Capacity | 14.1 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 14.3 gal |
Engine
| Engine Model | DE12Tis |
|---|---|
| Displacement | 671 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 300.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,200 rpm |
Hydraulic System
| Pump Flow Capacity | 51.2 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 3.4 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 2,631 psi |
| Pump Type | vane type |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 138 in |
| Reach at Max Lift and Dump | 54 in |
| Length with Bucket on Ground | 340 in |
| Hinge Pin - Max Height | 170 in |
Transmission
| Max Speed - Forward | 22.7 mph |
|---|---|
| Max Speed - Reverse | 15.0 mph |
| Transmission Type | full auto powershift countershaft |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 5.21 yd³ |
|---|---|
| Dump Clearance at Max Raise | 118 in |
| Breakout Force | 48,501 lb |
| Bucket Width | 151 in |
