Terex
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

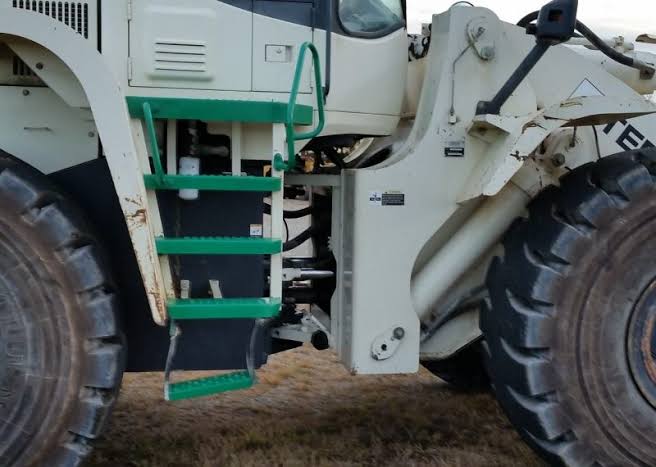

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 49,604 lb |
|---|---|
| Fuel Capacity | 96.5 gal |
| Tire Size | 26.5-25-20PR-L3 |
| Hydraulic System Fluid Capacity | 70.1 gal |
| Static Tipping Weight | 41,667 lb |
| Operating Voltage | 24 V |
| Turning Radius | 251 in |
| Engine Oil Fluid Capacity | 6.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 11.9 gal |
| Rear Axle/Diff Fluid Capacity | 11.1 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 14.3 gal |
Engine
| Engine Model | QSL 9 |
|---|---|
| Displacement | 543 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 280.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 100.4 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 3,626 psi |
| Pump Type | two load sensing axial piston pumps |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 139 in |
| Wheelbase | 138 in |
| Width Over Tires | 118 in |
| Reach at Max Lift and Dump | 54 in |
| Length with Bucket on Ground | 343 in |
| Hinge Pin - Max Height | 172 in |
Transmission
| Max Speed - Forward | 23.7 mph |
|---|---|
| Max Speed - Reverse | 17.4 mph |
| Transmission Type | full power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 5.21 yd³ |
|---|---|
| Dump Clearance at Max Raise | 118 in |
| Breakout Force | 49,458 lb |
| Bucket Width | 126 in |
