Toyota
Komatsu
FB15M-3
Forklift
22 specifications
1 / 5

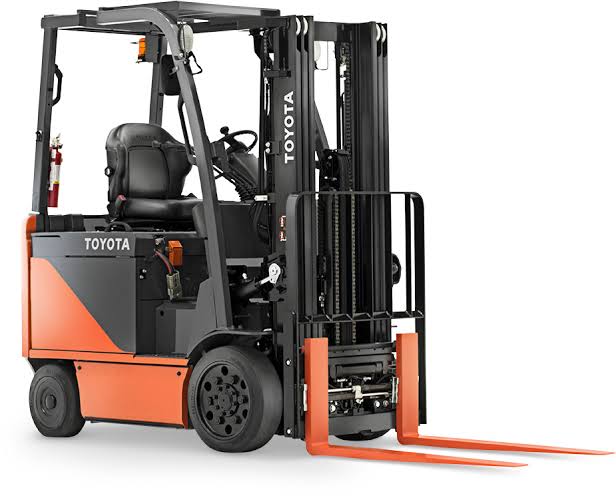

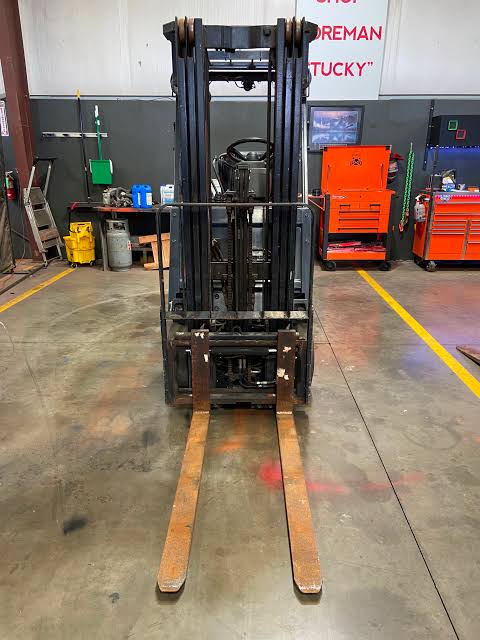

Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 5,214 lb |
|---|---|
| Max Speed | 10.6 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | cushion |
| Drawbar Pull | 2,080 lb |
| Hydraulic System Relief Valve Pressure | 2,280 psi |
| Tire Size | Front - 18 x 6 x 12-1 / 8 Rear - 14 x 4-1 / 2x8 |
Engine
| Fuel Type | Electric |
|---|
Dimensions
| Wheelbase | 49 in |
|---|---|
| Overall Width | 39 in |
| Turning Radius | 67 in |
| Overall Height - mast lowered | 180 in |
| Length to Fork Face | 77 in |
| Gradeability | 20.0 % |
| Height to Top of Overhead Guard | 88 in |
| Max Fork Height | 132 in |
| Right Angle Stack | 83 in |
| Front Wheel Tread Width | 31 in |
| Rear Wheel tread Width - max | 32 in |
| Free lift | 6 in |
Mast
| Load Capacity | 3,500 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 0.9 mph |
| Lower Speed | 1.1 mph |
Electrical System
| Battery capacity | 510 Ah |
|---|---|
| Battery voltage | 48 V |
| Control Drive | Transistor Invertor |
| Control Power Steering | Electromagnetic Contactor |
