Vermeer

CX254

Mini Excavator

Operating Weight
11,224 lb
Max Digging Depth
143 in
Net Power
52.0 hp
All mini excavators

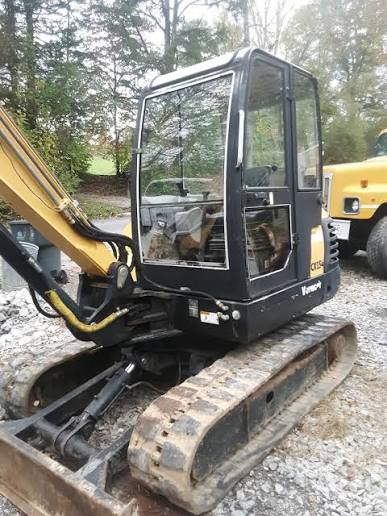

Vermeer CX254 Mini Excavator
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,224 lb
Fuel Capacity17.2 gal
Hydraulic Pump Flow Capacity26.4 gal/min
Hydraulic System Fluid Capacity21.9 gal

Engine

Engine specifications
Engine ModelV2003-T Diesel
Displacement122 in³
Power Measured @2,400 rpm
Net Power52.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance26 in
Height - Top of Cab100 in
Tail Swing Radius54 in
Width to Outside of Tracks74 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge59 in
Max Travel Speed3.3 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth143 in
Max Reach Along Ground228 in
Max Vertical Wall Digging Depth108 in
Max Loading Height158 in
Max Cutting Height207 in
Shipping Height of Unit100 in

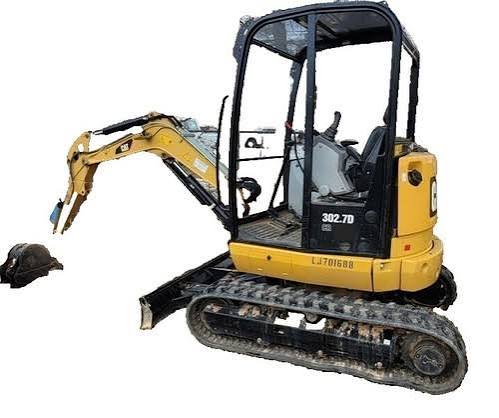

Comparable machines
