Versatile

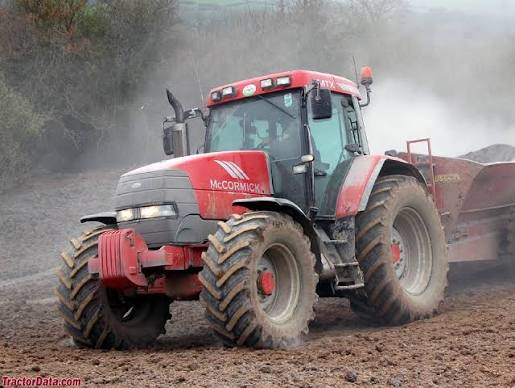

Mccormick
MTX135
Tractor
19 specifications

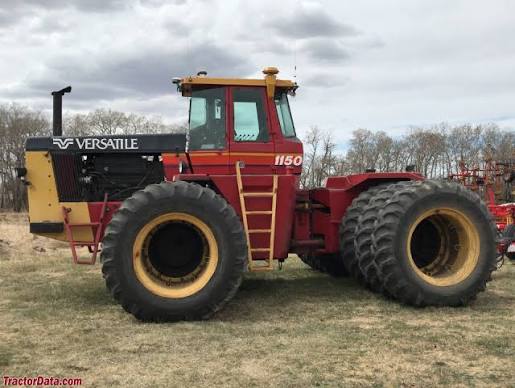

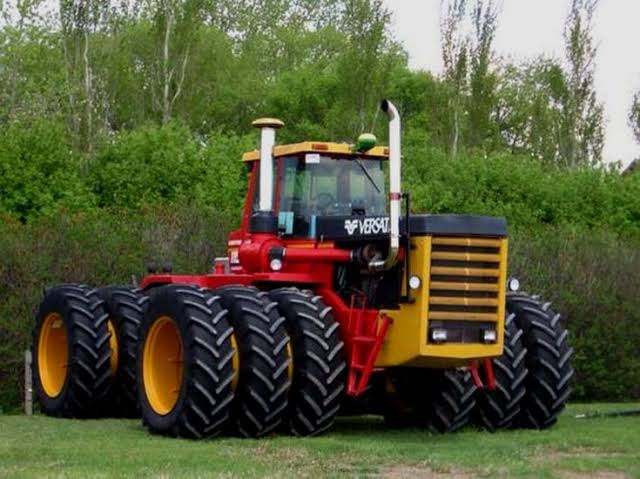

Versatile
1150
- Operating Weight
- 22,000 lb
- Displacement
- 1,147 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 470.0 hp
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 22,000 lb |
|---|---|
| Fuel Capacity | 400.0 gal |
| Alternator Supplied Amperage | 90 A |
| Cooling System Fluid Capacity | 21.3 gal |
| Hydraulic System Fluid Capacity | 21.0 gal |
| Engine Oil Capacity | 5.0 gal |
| Front Tire Size | 20.8x38 |
| Rear Tire Size | 20.8x38 |
Engine
| Engine Model | KTA 1150C |
|---|---|
| Displacement | 1,147 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 470.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | Cummins |
| PTO Power | 400.0 hp |
| Stroke | 6 in |
| Bore | 6 in |
Hydraulic System
| Number of Remote Control Valves | 5 |
|---|---|
| Hydraulic System Type | Closed center load sensing |
Dimensions
| Wheelbase | 139 in |
|---|
Transmission
| Number of Forward Gears | 8 |
|---|---|
| Transmission Type | Gear |
| Number of Reverse Gears | 4 |
