Versatile
Buhler
Versatile 305
Tractor
31 specifications

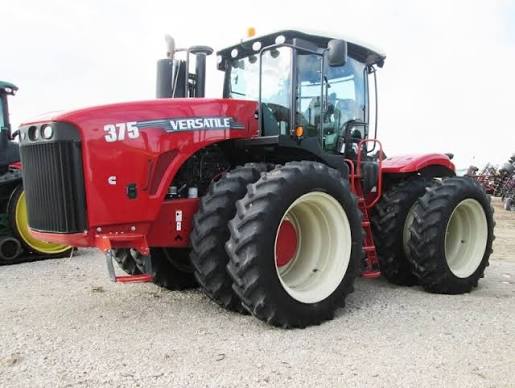

Versatile
375
- Operating Weight
- 49,500 lb
- Displacement
- 659 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 375.0 hp
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 49,500 lb |
|---|---|
| Fuel Capacity | 250.0 gal |
| Alternator Supplied Amperage | 160 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 15.9 gal |
| Hydraulic System Fluid Capacity | 20.0 gal |
| Engine Oil Capacity | 9.7 gal |
| Front Tire Size | 710/70R38 |
| Rear Tire Size | 710/70R38 |
| Drawbar Static Vertical Load Rating | 6,000 lb |
Engine
| Engine Model | QSX15 |
|---|---|
| Displacement | 659 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 375.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | Cummins |
| Stroke | 6 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 50.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,900 psi |
| Hydraulic System Type | Closed center load sensing |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 144 in |
| Wheelbase | 142 in |
| Overall Length | 265 in |
Transmission
| Number of Forward Gears | 12 |
|---|---|
| Transmission Type | Partially synchronized |
| Number of Reverse Gears | 4 |
