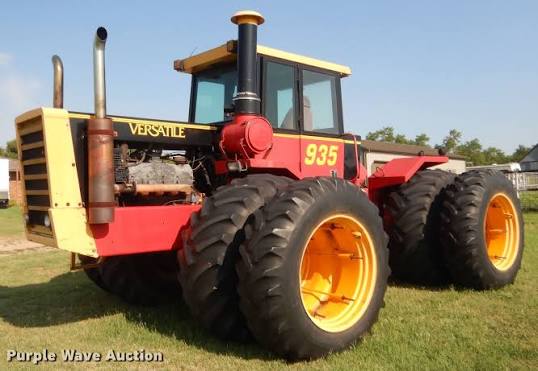

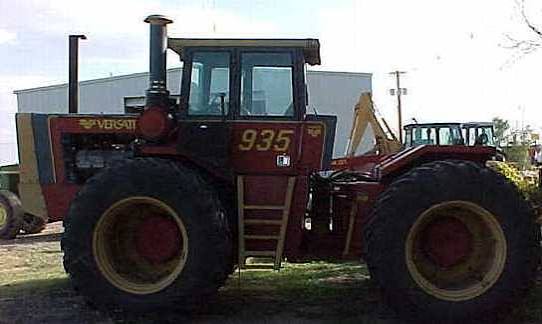

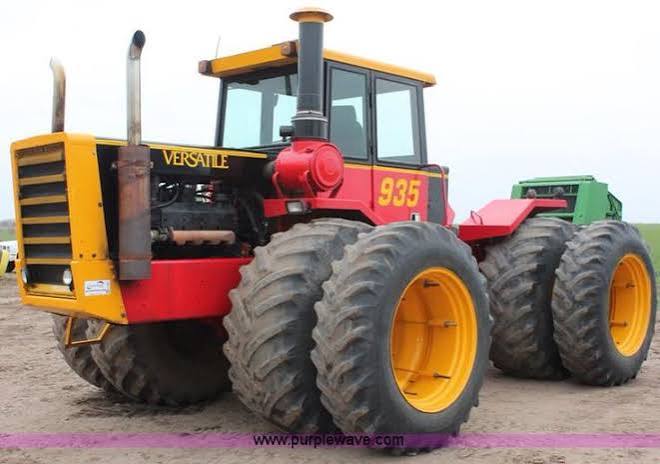

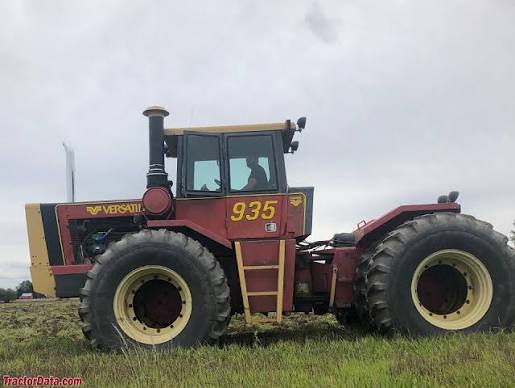

Versatile
935
- Operating Weight
- 20,000 lb
- Displacement
- 903 in³
- Power Measured @
- 2,400 rpm
- Gross Power
- 300.0 hp
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 20,000 lb |
|---|---|
| Fuel Capacity | 185.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,370 lb |
| 3 Point Hitch Type | III |
| Alternator Supplied Amperage | 75 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 13.3 gal |
| Hydraulic System Fluid Capacity | 18.6 gal |
| Engine Oil Capacity | 8.6 gal |
| Front Tire Size | 24.5x32 |
| Rear Tire Size | 24.5x32 |
Engine
| Engine Model | V-903 |
|---|---|
| Displacement | 903 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 300.0 hp |
| Number of Cylinders | 8 |
| Torque Measured @ | 1,800 rpm |
| Engine Make | Cummins |
| Stroke | 5 in |
| Bore | 6 in |
| Torque | 706 lb-ft |
Hydraulic System
| Pump Flow Capacity | 26.9 gal/min |
|---|---|
| Number of Remote Control Valves | 3 |
| Hydraulic System Type | Open center |
Dimensions
| Height - Top of Cab | 131 in |
|---|---|
| Wheelbase | 130 in |
| Overall Length | 253 in |
Transmission
| Max Speed - Reverse | 5.3 mph |
|---|---|
| Max Speed - Forward | 14.3 mph |
| Number of Forward Gears | 12 |
| Number of Reverse Gears | 4 |
