Volvo
BM 1641
- Operating Weight
- 37,479 lb
- Bucket Capacity - heaped
- 4.20 yd³
- Gross Power
- 240.0 hp
- Net Power
- 205.0 hp
1 / 5

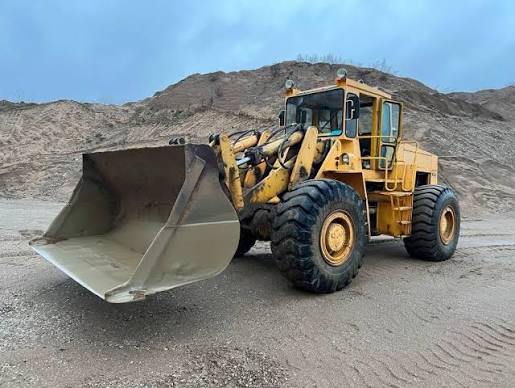

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 37,479 lb |
|---|---|
| Fuel Capacity | 64.1 gal |
| Tire Size | 23.5-25 Radial |
| Hydraulic System Fluid Capacity | 84.5 gal |
| Static Tipping Weight | 25,794 lb |
| Operating Voltage | 24 V |
| Turning Radius | 260 in |
| Engine Oil Fluid Capacity | 7.7 gal |
| Rear Axle Oscillation | 34 ° |
| Alternator Supplied Amperage | 45 A |
| Front Axle/Diff Fluid Capacity | 9.2 gal |
| Rear Axle/Diff Fluid Capacity | 8.2 gal |
| Cooling System Fluid Capacity | 15.8 gal |
| Transmission Fluid Capacity | 9.0 gal |
Engine
| Engine Model | TD 100 |
|---|---|
| Displacement | 586 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 240.0 hp |
| Net Power | 205.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 98.0 gal/min |
|---|---|
| Raise Time | 7.8 s |
| Lower Time | 4.2 s |
| Relief Valve Setting | 2,031 psi |
| Pump Type | Gear Pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 137 in |
| Width Over Tires | 115 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 311 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 28.0 mph |
|---|---|
| Max Speed - Reverse | 28.0 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 115 in |
| Bucket Width | 122 in |
