Volvo

EC340

Excavator

Operating Weight
77,713 lb
Max Digging Depth
241 in
Max Digging Depth
260 in
Net Power
244.1 hp
All excavators

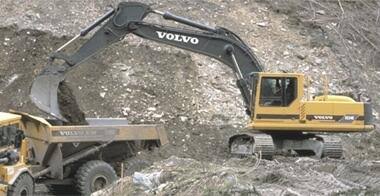

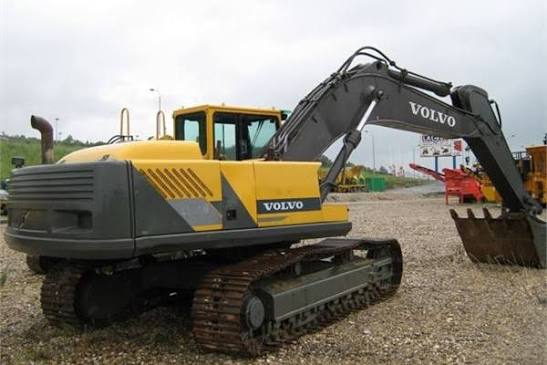

Volvo EC340 Excavator
1 / 5
Image 1 of 5
Image: rent1usa.com

Specifications

70 data points

Operating Specifications

Operating Specifications specifications
Operating Weight77,713 lb
Fuel Capacity190.3 gal
Hydraulic Pump Flow Capacity133.7 gal/min
Hydraulic System Fluid Capacity124.2 gal
Engine Oil Capacity9.2 gal
Cooling System Fluid Capacity15.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity6.4 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelTD 103 KAE
Displacement586 in³
Power Measured @1,700 rpm
Gross Power254.8 hp
Net Power244.1 hp
AspirationTurbocharged and Intercooled

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab124 in
Length of Track on Ground166 in
Tail Swing Radius131 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.2 mph
Shoe Size24 in
Number of Shoes per Side53
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth241 in
Max Reach Along Ground390 in
Max Loading Height276 in
Max Vertical Wall Digging Depth146 in
Max Cutting Height414 in
Shipping Length of Unit414 in
Shipping Height of Unit128 in

Bucket

Bucket specifications
Reference Bucket Capacity2.39 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth260 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height438 in
Max Loading Height296 in
Max Reach Along Ground410 in
Shipping Length of Unit414 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth284 in
Max Cutting Height445 in
Max Loading Height304 in
Max Vertical Wall Digging Depth202 in
Max Reach Along Ground430 in
Shipping Length of Unit414 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth269 in
Max Cutting Height438 in
Max Reach Along Ground418 in
Max Loading Height300 in
Max Vertical Wall Dig Depth170 in
Shipping Length of Unit445 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth288 in
Max Reach Along Ground442 in
Max Cutting Height461 in
Max Loading Height316 in
Max Vertical Wall Dig Depth214 in
Shipping Height of Unit133 in
Shipping Length of Unit442 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth312 in
Max Reach Along Ground461 in
Max Cutting Height469 in
Max Loading Height328 in
Max Vertical Wall Dig Depth226 in
Shipping Length of Unit442 in
Shipping Height of Unit134 in
