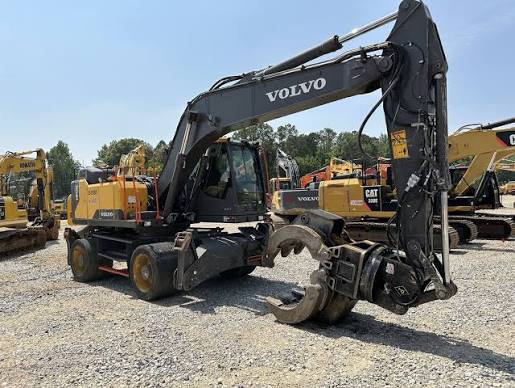

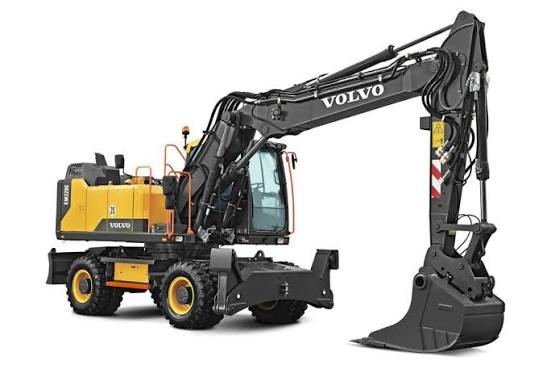

Volvo
Liugong
936E
Excavator
Specifications pending
1 / 5
Image 1 of 5
Specifications
61 data points
Engine
| Engine Model | D6J |
|---|---|
| Displacement | 348 in³ |
| Gross Power | 173.0 hp |
| Net Power | 169.0 hp |
| Number of Cylinders | 6 |
| Stroke | 5 in |
| Bore | 4 in |
| Max Power | — |
| Net Torque | 627 lb-ft |
Hydraulic System
| Implement | 5,439 psi |
|---|---|
| Main pump- low noise axial piston pump-MAX Flow | 99.1 gal/min |
| Pilot circuit | 508 psi |
| Maximum flow -Servo pump, low noise gear pump | 12.7 gal/min |
Dimensions
| Wheelbase | 109 in |
|---|---|
| Overall Width | 108 in |
| Tail Swing Radius | 104 in |
| Counterweight Clearance | 52 in |
Fluid Capacities
| Fuel Tank | 76.7 gal |
|---|---|
| Engine Oil | 6.7 gal |
| Hydraulic Tank | 45.0 gal |
| Transmission | 0.7 gal |
| Engine coolant | 8.8 gal |
| Front axle | 891 in³ |
| Hydraulic tank - Total system | 89.9 gal |
| Rear Axle | 5.2 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 238 in |
|---|---|
| Max Vertical Wall Digging Depth | 204 in |
| Max Cutting Height | 400 in |
| Max Digging Reach | 391 in |
| Max.Dumping Height | 275 in |
| Max Digging Reach on Ground | 384 in |
| Boom/Stick Option (HEX) 1 | MoonBoom 57m(Ftin-188)Arm 245 m(Ftin-80) |
| Min - front slew radius | 137 in |
General Specifications
| Operating Weight lbs (kg) | 48,939 (22,200) — Starting 2025 Model Year |
|---|---|
| Digging Depth ft (m) | 21.0 (6.4) — Starting 2025 Model Year |
| Digging Reach ft. (m) | 33.1 (10.4) — Starting 2025 Model Year |
| Engine hp (kW) | 173 (129) — Starting 2025 Model Year |
Boom/Stick Excavator Option 2
| Max Digging Depth | 244 in |
|---|---|
| Max Vertical Wall Digging Depth | 210 in |
| Max Cutting Height | 403 in |
| Max Digging Reach | 397 in |
| Max.Dumping Height | 278 in |
| Max Digging Reach on Ground | 390 in |
| Boom/Stick Option (HEX) 2 | MoonBoom 57m(Ftin-188)Arm 26 m(Ftin-86) |
| Min - front slew radius | 138 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 254 in |
|---|---|
| Max Cutting Height | 411 in |
| Max Vertical Wall Digging Depth | 222 in |
| Max.Dumping Height | 411 in |
| Max Digging Reach on Ground | 402 in |
| Boom/Stick Option (HEX) 3 | MoonBoom 57m(Ftin-188)Arm 29 m(Ftin-96) |
| Max Digging Reach | 408 in |
| Min - front slew radius | 139 in |
Electrical System
| Batteries | 2 X12 volts |
|---|---|
| Alternator | — |
| Voltage | 24 V |
| Battery capacity | — |
Speeds
| creep | 3.2 mph |
|---|---|
| Min turning radius | 97 in |
| speed -off road | 4.6 mph |
| speed -on road | 18.6 mph |
