Volvo

EW60E

Excavator

Max Digging Depth
131 in
Net Power
60.6 hp
All excavators

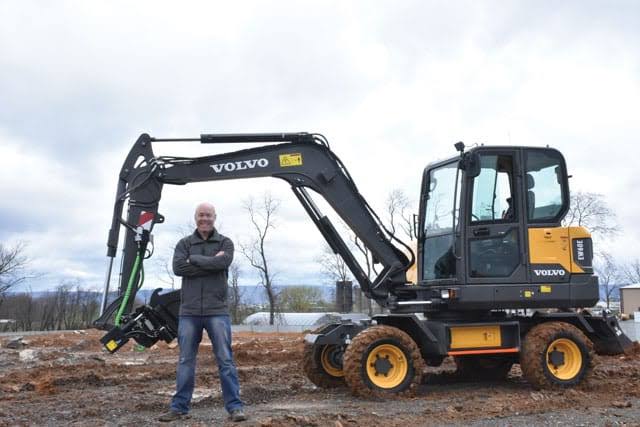

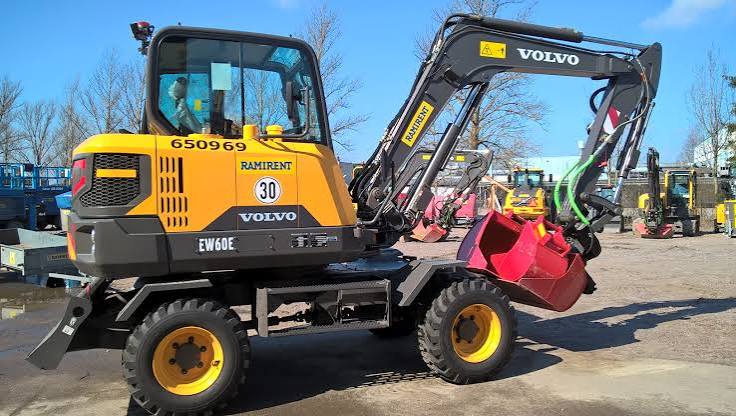

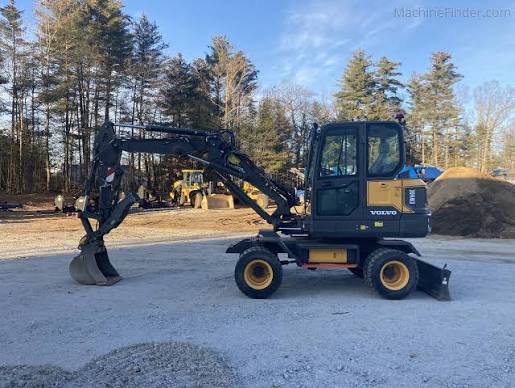

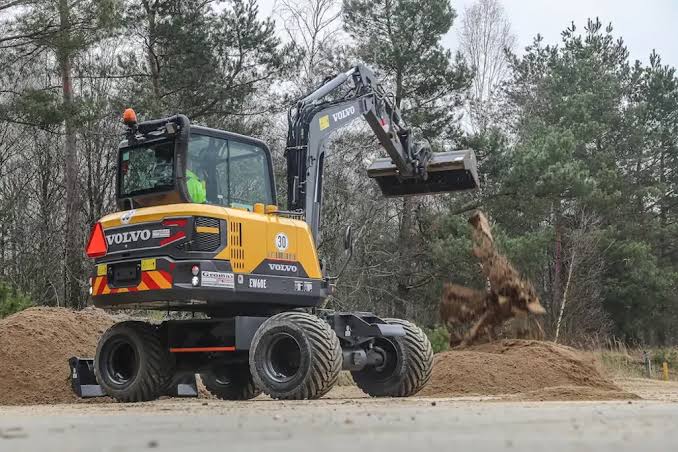

Volvo EW60E Excavator
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

36 data points

Engine

Engine specifications
Engine ModelD2.6H
Displacement159 in³
Gross Power63.0 hp
Net Power60.6 hp
Number of Cylinders4
Stroke4 in
Bore4 in
Max Power—
Rated Engine Speed2,000 rpm
Fuel tank27.8 gal

Dimensions

Dimensions specifications
Overall Length231 in
Tail Swing Radius66 in

Undercarriage

Undercarriage specifications
Number of bottom rollers per side—
Number of top rollers per side—
Shoe Width - Steel15/20 in ( 380/500 mm)

Fluid Capacities

Fluid Capacities specifications
Hydraulic system2.2 gal
Engine Oil3.0 gal
Hydraulic Tank20.1 gal
Engine coolant2.7 gal
Hydraulic tank - Total system31.8 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth131 in
Max Reach Along Ground239 in
Max Vertical Wall Digging Depth94 in
Max Cutting Height238 in
Max Digging Reach238 in
Max.Dumping Height175 in
Max Digging Reach on Ground229 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

General Specifications

General Specifications specifications
Operating Weight lbs (kg)11,360 - 12,900 (5,153 - 5,851) Starting 2025 Model Year
Digging Depth ft (m)10.8 (3.3) Starting 2025 Model Year
Digging Reach ft. (m)19.8 (6) Starting 2025 Model Year
Engine hp (kW)63 (47) Starting 2025 Model Year

Loader

Loader specifications
Breakout Force—

Electrical System

Electrical System specifications
Voltage12 V
Battery capacity74 Ah

Performance

Performance specifications
Gradeability35.0 %
