Volvo
Liugong
936E
Excavator
Specifications pending
1 / 5
Image 1 of 5
Specifications
68 data points
Engine
| Engine Model | D4J |
|---|---|
| Displacement | 247 in³ |
| Gross Power | 154.0 hp |
| Net Power | 150.0 hp |
| Number of Cylinders | 4 |
| Bore | 4 in |
| Stroke | 5 in |
| Max Power | — |
| Net Torque | 456 lb-ft |
Hydraulic System
| Main pump- low noise axial piston pump-MAX Flow | 72.7 gal/min |
|---|---|
| Pilot circuit | 74 psi |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 103 in |
| Overall Width | 100 in |

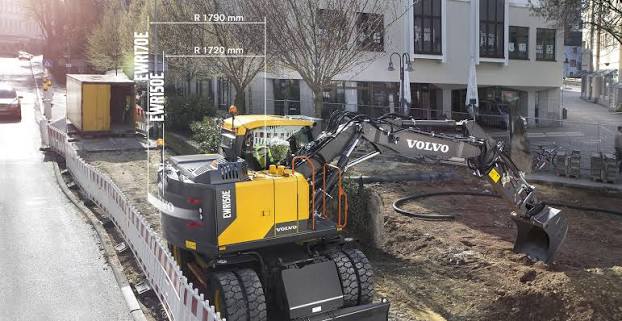

| Tail Swing Radius | 71 in |
| Counterweight Clearance | 50 in |
Fluid Capacities
| Fuel Tank | 52.9 gal |
|---|---|
| Engine Oil | 4.3 gal |
| Hydraulic Tank | 27.5 gal |
| Engine coolant | 8.5 gal |
| Front axle | 580 in³ |
| Hydraulic tank - Total system | 60.8 gal |
| Rear Axle | 3.4 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 205 in |
|---|---|
| Max Vertical Wall Digging Depth | 158 in |
| Max Cutting Height | 380 in |
| Max Digging Reach | 347 in |
| Max.Dumping Height | 260 in |
| Max Digging Reach on Ground | 339 in |
| Boom/Stick Option (HEX) 1 | 2-piece boom 51 m(Ftin-169)Arm 20 m(Ftin-67) |
| Min - front slew radius | 107 in |
General Specifications
| Operating Weight lbs (kg) | 39,570 (17,949) Starting 2025 Model Year |
|---|---|
| Digging Depth ft (m) | 18.8 (5.8) Starting 2025 Model Year |
| Digging Reach ft. (m) | 28.9 (8.8) Starting 2025 Model Year |
| Engine hp (kW) | 154 (115) Starting 2025 Model Year |
Boom/Stick Excavator Option 2
| Max Digging Depth | 223 in |
|---|---|
| Max Vertical Wall Digging Depth | 179 in |
| Max Cutting Height | 398 in |
| Max Digging Reach | 364 in |
| Max.Dumping Height | 274 in |
| Max Digging Reach on Ground | 356 in |
| Boom/Stick Option (HEX) 2 | 2-piece boom 51 m(Ftin-169)Arm 245 m(Ftin-80) |
| Min - front slew radius | 111 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 228 in |
|---|---|
| Max Cutting Height | 400 in |
| Max Vertical Wall Digging Depth | 185 in |
| Max.Dumping Height | 2,757 in |
| Max Digging Reach on Ground | 362 in |
| Boom/Stick Option (HEX) 3 | 2-piece boom 51 m(Ftin-169)Arm 26 m(Ftin-86) |
| Max Digging Reach | 370 in |
| Min - front slew radius | 113 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 248 in |
|---|---|
| Max Cutting Height | 414 in |
| Max Vertical Wall Dig Depth | 204 in |
| Max Digging Reach | 388 in |
| Max.Dumping Height | 293 in |
| Boom/Stick Option (HEX) 4 | 2-piece boom 51 m(Ftin-169)Arm 31 m(Ftin-102) |
| Min - front slew radius | 119 in |
| Max Digging Reach on Ground | 381 in |
Electrical System
| Batteries | 2X12 volts |
|---|---|
| Alternator | — |
| Voltage | 24 V |
| Battery capacity | — |
| Alternator rating | 3360 |
Speeds
| creep | 2.5 mph |
|---|---|
| Min turning radius | 288 in |
| speed -off road | 5.3 mph |
| speed -on road | 21.7 mph |
