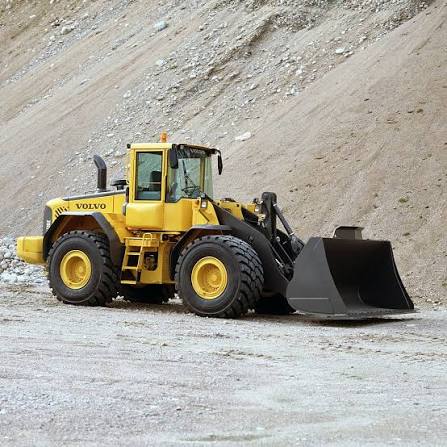

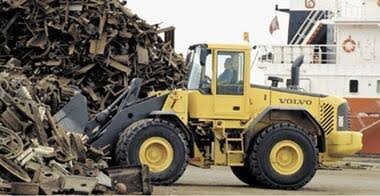

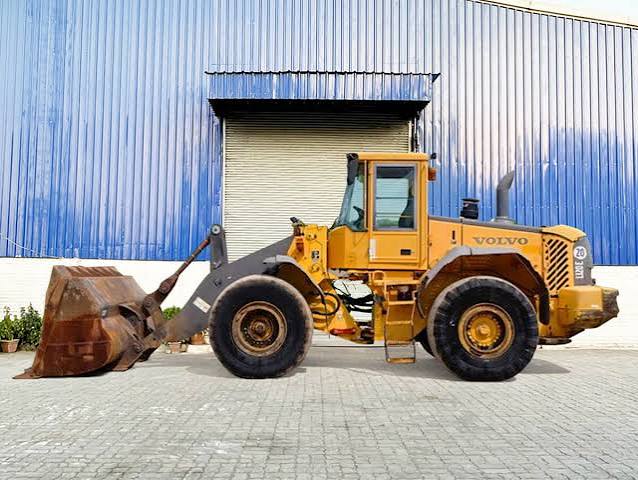

Volvo
L120E
- Operating Weight
- 41,800 lb
- Bucket Capacity - heaped
- 4.39 yd³
- Gross Power
- 224.0 hp
- Net Power
- 223.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 41,800 lb |
|---|---|
| Fuel Capacity | 56.8 gal |
| Tire Size | 23.5R25 L3 |
| Hydraulic System Fluid Capacity | 37.8 gal |
| Static Tipping Weight | 31,262 lb |
| Operating Voltage | 24 V |
| Turning Radius | 253 in |
| Engine Oil Fluid Capacity | 5.6 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 9.6 gal |
| Rear Axle/Diff Fluid Capacity | 10.9 gal |
| Cooling System Fluid Capacity | 18.5 gal |
| Transmission Fluid Capacity | 10.1 gal |
Engine
| Engine Model | D7D LA E2 |
|---|---|
| Displacement | 433 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 224.0 hp |
| Net Power | 223.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 38.4 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 2.5 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 3,626 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 126 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 54 in |
| Length with Bucket on Ground | 325 in |
| Hinge Pin - Max Height | 162 in |
Transmission
| Max Speed - Forward | 21.9 mph |
|---|---|
| Max Speed - Reverse | 21.9 mph |
| Transmission Type | Volvo HTE205 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.39 yd³ |
|---|---|
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 35,947 lb |
| Bucket Width | 114 in |
