Volvo

L20H

Wheel Loader

Gross Power
64.4 hp
Net Power
63.5 hp
All wheel loaders

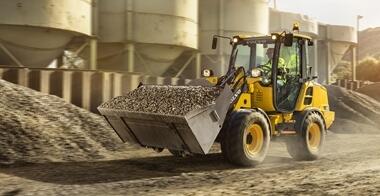

Volvo L20H Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity15.9 gal
Hydraulic System Fluid Capacity15.6 gal
Engine Oil Fluid Capacity2.7 gal
Cooling System Fluid Capacity2.5 gal

Engine

Engine specifications
Engine ModelVolvo D2.6M
Displacement201 in³
Power Measured @2,400 rpm
Gross Power64.4 hp
Net Power63.5 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,500 rpm
Stroke4 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.6 gal/min
Working pressure20 MPa 200 bar
Engine speed2,400 rpm

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab98 in
Wheelbase81 in
Width Over Tires65 in
Length with Bucket on Ground199 in
Hinge Pin - Max Height125 in

Bucket

Bucket specifications
Breakout Force7,868 lb

General Specifications

General Specifications specifications
Operating Weight10,251 (4,650) — Starting 2024 Model Year
Bucket Capacity1.05 (.8) — Starting 2024 Model Year
Engine typeVolvo D2.6M — Starting 2019 Model Year
Engine Power64 (48) — Starting 2024 Model Year
Max Dump Height7.9 (2.4) — Starting 2024 Model Year

Drive System

Drive System specifications
Transport speed, maximum18.7 mph

Hydraulic cycle times (unloaded)

Hydraulic cycle times (unloaded) specifications
Lift5.2 s
Lower3.0 s
Dump time3.9 s

Steering System

Steering System specifications
Articulation Angle38 °
Maximum flow8.0 gal/min
Steering cylinders1
Working pressure21 MPa 3046 bar

Electrical System

Electrical System specifications
Voltage12 V
Battery capacity100 Ah
Alternator rating70 (W/A)
Starter motor output3.4 hp

Axles

Axles specifications
Axle oil front1.1 gal
Axle oil rear1.5 gal
