Volvo

L220F

Wheel Loader

Operating Weight
68,762 lb
Bucket Capacity - heaped
6.50 yd³
Gross Power
350.1 hp
Net Power
347.4 hp
All wheel loaders

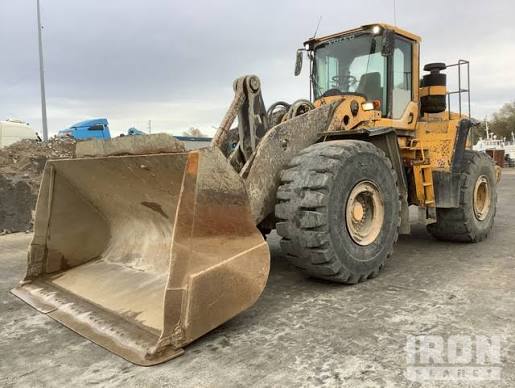

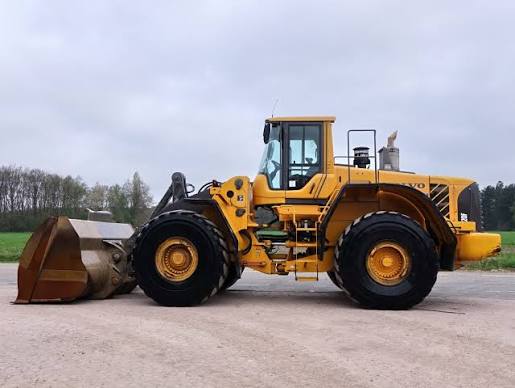

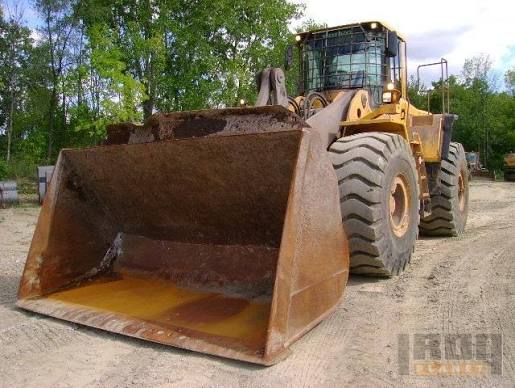

Volvo L220F Wheel Loader
1 / 5
Image 1 of 5
Image: psauction.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight68,762 lb
Fuel Capacity88.5 gal
Tire Size29.5R25 L3
Hydraulic System Fluid Capacity59.8 gal
Static Tipping Weight52,404 lb
Operating Voltage24 V
Turning Radius305 in
Engine Oil Fluid Capacity12.7 gal
Rear Axle Oscillation15 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity20.4 gal
Rear Axle/Diff Fluid Capacity18.8 gal
Cooling System Fluid Capacity11.1 gal
Transmission Fluid Capacity11.9 gal
Rated Bucket Capacity5.90 – 18.30 yd³

Engine

Engine specifications
Engine ModelD12DLBE3
Displacement732 in³
Power Measured @1,600 rpm
Gross Power350.1 hp
Net Power347.4 hp
Number of Cylinders6
AspirationTurbocharged and Intercooled
Torque Measured @1,400 rpm
MakeVolvo

Weights

Weights specifications
Operating Weight69,090 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity52.6 gal/min
Raise Time5.8 s
Lower Time3.2 s
Dump Time1.6 s
Relief Valve Setting3,771 psi

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab148 in
Wheelbase146 in
Width Over Tires126 in
Reach at Max Lift and Dump50 in
Length with Bucket on Ground356 in
Hinge Pin - Max Height185 in

Transmission

Transmission specifications
Max Speed - Forward22.4 mph
Max Speed - Reverse22.4 mph
Transmission TypeAutomatic Powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped6.50 yd³
Dump Clearance at Max Raise131 in
Bucket Width134 in
