Volvo
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

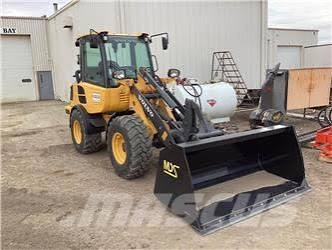

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Fuel Capacity | 15.9 gal |
|---|---|
| Hydraulic System Fluid Capacity | 15.6 gal |
| Engine Oil Fluid Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 2.5 gal |
Engine
| Engine Model | Volvo D2.6M |
|---|---|
| Displacement | 201 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 64.4 hp |
| Net Power | 63.5 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Stroke | 4 in |
| Bore | 4 in |
Hydraulic System
| Pump Flow Capacity | 14.6 gal/min |
|---|---|
| Working pressure | 3 MPa 230 bar |
| Engine speed | 2,400 rpm |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 98 in |
| Wheelbase | 81 in |
| Width Over Tires | 70 in |
| Length with Bucket on Ground | 199 in |
| Hinge Pin - Max Height | 125 in |
Bucket
| Breakout Force | 8,318 lb |
|---|---|
| Bucket Width | 72 in |
General Specifications
| Operating Weight | 10,913 (4,950) — Starting 2024 Model Year |
|---|---|
| Bucket Capacity | 1.2 (1) — Starting 2024 Model Year |
| Engine type | Volvo D2.6M — Starting 2019 Model Year |
| Engine Power | 64 (48) — Starting 2024 Model Year |
| Max Dump Height | 7.7(2.3) — Starting 2024 Model Year |
Drive System
| Transport speed, maximum | 18.7 mph |
|---|
Hydraulic cycle times (unloaded)
| Lift | 5.2 s |
|---|---|
| Lower | 3.0 s |
| Dump time | 3.9 s |
Steering System
| Articulation Angle | 38 ° |
|---|---|
| Maximum flow | 8.0 gal/min |
| Steering cylinders | 1 |
| Working pressure | 21 MPa 3046 bar |
Electrical System
| Voltage | 12 V |
|---|---|
| Battery capacity | 100 Ah |
| Alternator rating | 70 (W/A) |
| Starter motor output | 3.4 hp |
Axles
| Axle oil front | 1.1 gal |
|---|---|
| Axle oil rear | 1.5 gal |
