Volvo

L330C

Wheel Loader

Operating Weight
106,770 lb
Bucket Capacity - heaped
9.10 yd³
Gross Power
503.0 hp
Net Power
498.0 hp
All wheel loaders

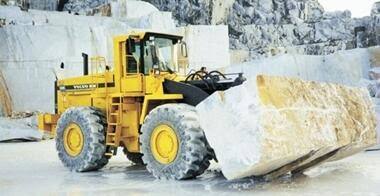

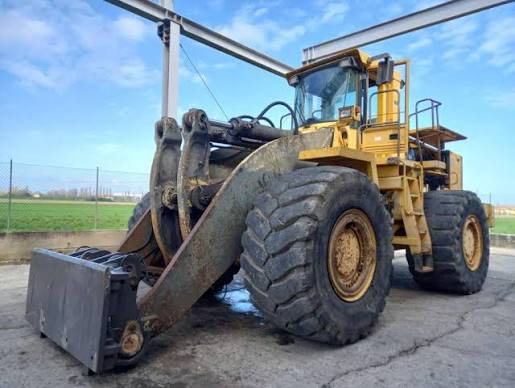

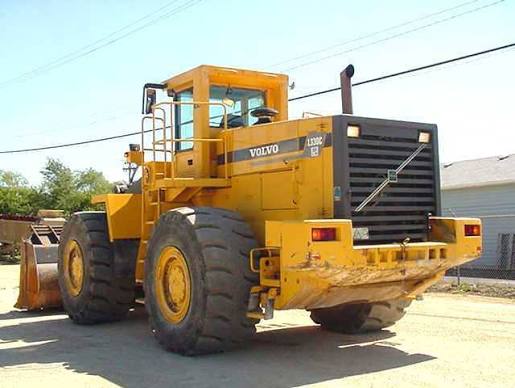

Volvo L330C Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight106,770 lb
Fuel Capacity183.1 gal
Tire Size35/65R33 XLD D1*L-4
Hydraulic System Fluid Capacity145.9 gal
Static Tipping Weight77,669 lb
Operating Voltage24 V
Turning Radius356 in
Engine Oil Fluid Capacity16.2 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity18.0 gal
Rear Axle/Diff Fluid Capacity18.0 gal
Cooling System Fluid Capacity23.8 gal
Transmission Fluid Capacity24.4 gal

Engine

Engine specifications
Engine ModelTD 164 KAE
Displacement984 in³
Power Measured @1,800 rpm
Gross Power503.0 hp
Net Power498.0 hp
Number of Cylinders6
AspirationTurbocharged and Intercooled
Torque Measured @1,000 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity196.0 gal/min
Raise Time8.5 s
Lower Time4.5 s
Dump Time1.8 s
Relief Valve Setting3,118 psi
Pump Typeaxial piston

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab165 in
Wheelbase161 in
Width Over Tires144 in
Reach at Max Lift and Dump70 in
Length with Bucket on Ground397 in
Hinge Pin - Max Height199 in

Transmission

Transmission specifications
Max Speed - Forward21.3 mph
Max Speed - Reverse12.4 mph
Transmission TypePower shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped9.10 yd³
Bucket Capacity - struck7.80 yd³
Dump Clearance at Max Raise145 in
Breakout Force105,120 lb
Bucket Width157 in
