VolvoVolvo

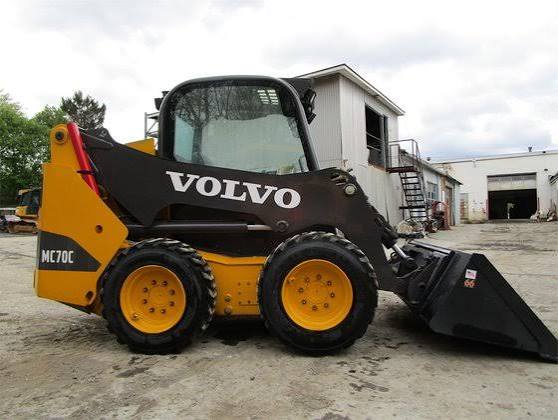

MC70C
Skid Steer Loader
65 specifications
1 / 5
Image 1 of 5
Specifications
65 data points
Engine
| Engine Model | KDI 2504 TCR |
|---|---|
| Displacement | 152 in³ |
| Gross Power | 54.1 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbo |
| Max Torque | 221 lb-ft |
| Fuel Type | Diesel |
| Alternator | 360,000 A |
| Battery | 12 - 109 (V - Ah) |
| Starter | 2.8 hp |
| Gross horsepower - SAE J1995 | 55.0 hp |
Weights
| Weight | 7,055 lb |
|---|
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 43 in |
| Overall Height | 78 in |
| Turning Radius | 66 in |
| Dump Height | 90 in |
| Dump angle | 42 ° |
| Angle of departure | 25 ° |
| Height to Hinge Pin | 118 in |
| Overall length (W/bucket) | 139 in |
| Overall length (L/bucket) | 110 in |
| Dump reach | 22 in |
| Turning radius front W/bucket | 83 in |
| Turning radius front L/bucket | 46 in |
| Attachment roll back angle | 30 ° |
Fluid Capacities
| Fuel Tank | 25.9 gal |
|---|---|
| Hydraulic system | 43.5 gal |
| Cooling system | 2.7 gal |
| Engine oil w/ filter change | 2.7 gal |
| Hydraulic oil reservoir | 26.0 gal |
| Tipping Load | 4,229 lb |
Bucket
| Breakout force, lift | 4,132 lb |
|---|---|
| Landscape Bucket Width | 73 in |
| Breakout force, curl | 3,964 lb |
| General Purpose Bucket Heaped | 0.60 yd³ |
| General Purpose Bucket Height | 22 in |
| General Purpose Bucket Length | 32 in |
| General Purpose Bucket Weight | 474 lb |
| General Purpose Bucket Width | 73 in |
| Landscape Bucket Heaped cap | 0.80 yd³ |
| Landscape Bucket Height | 22 in |
| Landscape Bucket Length | 39 in |
| Landscape Bucket Weight | 0 in³ |
| Multi Purpose Bucket Heaped cap | 0.80 yd³ |
| Multi Purpose Bucket Height | 28 in |
| Multi Purpose Bucket Length | 39 in |
| Multi Purpose Bucket Weight | 776 lb |
| Multi Purpose Bucket Width | 73 in |
General Specifications
| Engine Power HP (KW) | 73.8 (55) — Starting 2019 Model Year |
|---|---|
| Operating Width IN. (CM) | 59.8 (152) — Starting 2019 Model Year |
| Rated Operating Capacity LBS (KG) 50% | 2,114 (959) — Starting 2019 Model Year |
Loader
| Operating Load Rating | 2,114 lb |
|---|---|
| Operating Width | 60 in |
| Bucket Width | 66 in |
| Standard hydraulic pump output | 18.5 gal/min |
| System pressure | 3,336 psi |
| High flow pump output | 30.4 gal/min |
Performance
| Curl | 1.4 s |
|---|---|
| Dump | 1.8 s |
| Lift arm path | Radial |
| Lower (power down) | 1.8 s |
| Raise (lifting) | 3.2 s |
| Rated operating capacity (ISO 14397) | 2,114 lb |
Speeds
| Single speed | 12.0 mph |
|---|
