Volvo
Case
440
Skid Steer Loader
32 specifications
1 / 5

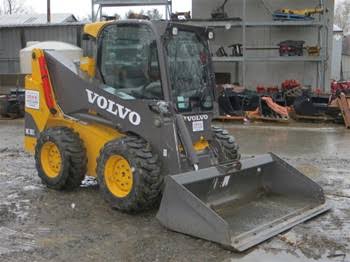

Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 7,654 lb |
|---|---|
| Max Speed | 6.0 mph |
| Fuel Capacity | 22.5 gal |
| Hydraulic System Fluid Capacity | 17.0 gal |
| Tire Size | 12.00x16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 A |
| Engine Oil Fluid Capacity | 2.8 gal |
| Cooling System Fluid Capacity | 4.1 gal |
| Chain Box Fluid Capacity - each side | 2.3 gal |
| Operating Speed | 6.0 mph |
Engine
| Engine Model | 1004.42 |
|---|---|
| Displacement | 258 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 86.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 20.3 gal/min |
|---|---|
| Relief Valve Pressure | 2,700 psi |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 81 in |
| Wheelbase | 44 in |
| Width Over Tires | 72 in |
| Reach at Max Lift and Dump | 25 in |
| Length with Bucket | 141 in |
| Clearance at Max Lift and Dump | 95 in |
| Length w/o Bucket | 111 in |
Loader
| Bucket Capacity | 0.71 yd³ |
|---|---|
| Operating Load Rating | 2,300 lb |
| Tipping Angle | 4,600 ° |
