Volvo

MC70B

Skid Steer Loader

Operating Weight
5,801 lb
Bucket Capacity
0.60 yd³
Max Speed
7.5 mph
All skid steer loaders

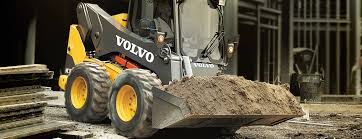

Volvo MC70B Skid Steer Loader
1 / 5
Image 1 of 5
Image: undergroundinfrastructure.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,801 lb
Max Speed7.5 mph
Hydraulic System Fluid Capacity15.0 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Fluid Capacity2.4 gal
Cooling System Fluid Capacity2.4 gal

Engine

Engine specifications
Engine ModelD2.0A
Displacement122 in³
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.1 gal/min
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab79 in
Wheelbase41 in
Width Over Tires66 in
Reach at Max Lift and Dump26 in
Length with Bucket131 in
Clearance at Max Lift and Dump86 in
Turning Radius from Center - inc bucket86 in
Turning Radius from Center - machine rear55 in
Length w/o Bucket107 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating1,500 lb
Tipping Angle3,004 °
