Volvo

MC80B

Skid Steer Loader

Operating Weight
6,824 lb
Bucket Capacity
0.71 yd³
Max Speed
6.3 mph
All skid steer loaders

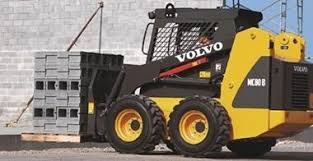

Volvo MC80B Skid Steer Loader
1 / 5
Image 1 of 5
Image: undergroundinfrastructure.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,824 lb
Max Speed6.3 mph
Fuel Capacity23.0 gal
Hydraulic System Fluid Capacity25.7 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Fluid Capacity2.9 gal
Cooling System Fluid Capacity4.1 gal

Engine

Engine specifications
Engine ModelD3.4A
Displacement201 in³
Number of Cylinders4
AspirationNatural

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.3 gal/min
Relief Valve Pressure2,700 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab81 in
Wheelbase41 in
Width Over Tires73 in
Reach at Max Lift and Dump23 in
Length with Bucket138 in
Clearance at Max Lift and Dump93 in
Turning Radius from Center - inc bucket91 in
Turning Radius from Center - machine rear58 in
Length w/o Bucket114 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating1,850 lb
Tipping Angle3,770 °
