Volvo

MC95C

Skid Steer Loader

Gross Power
41.1 hp
All skid steer loaders

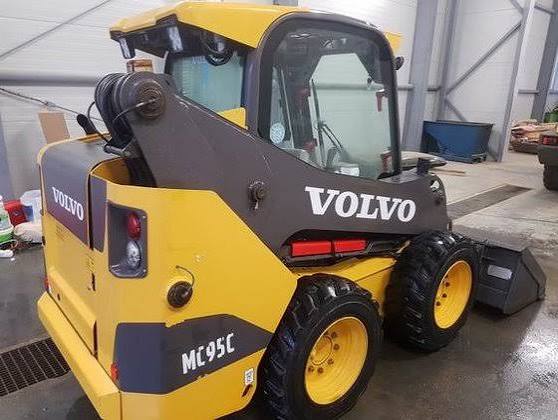

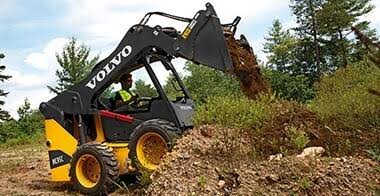

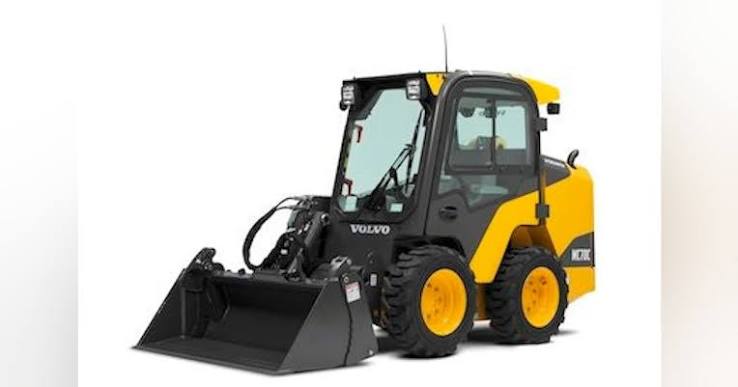

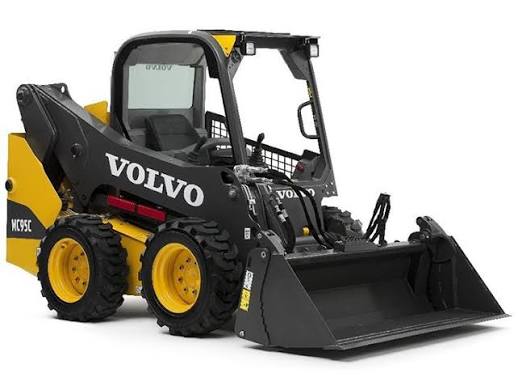

Volvo MC95C Skid Steer Loader
1 / 5
Image 1 of 5
Image: dir.indiamart.com

Specifications

60 data points

Engine

Engine specifications
Engine ModelKDI 2054 TCR
Displacement151 in³
Gross Power41.1 hp
Number of Cylinders4
AspirationTurbo
Max Torque221 lb-ft
Fuel TypeDiesel
Alternator360,000 A
Battery12 - 109 (V - Ah)
Starter2.8 hp
Gross horsepower - SAE J199546.0 hp

Weights

Weights specifications
Weight7,055 lb

Dimensions

Dimensions specifications
Ground Clearance8 in
Wheelbase43 in
Overall Height78 in
Turning Radius66 in
Dump Height4 in
Dump angle42 °
Angle of departure25 °
Height to Hinge Pin5 in
Overall length (W/bucket)139 in
Overall length (L/bucket)110 in
Dump reach34 in
Turning radius front L/bucket46 in
Turning radius front W/bucket83 in
Attachment roll back angle30 °

Fluid Capacities

Fluid Capacities specifications
Fuel Tank25.9 gal
Hydraulic system43.5 gal
Cooling system2.7 gal
Engine oil w/ filter change2.6 gal
Hydraulic oil reservoir26.0 gal
Tipping Load3,799 lb

Bucket

Bucket specifications
Breakout force, lift3,461 lb
Landscape Bucket Width73 in
Breakout force, curl4,718 lb
General Purpose Bucket Heaped0.60 yd³
General Purpose Bucket Height22 in
General Purpose Bucket Length32 in
General Purpose Bucket Weight474 lb
General Purpose Bucket Width73 in
Landscape Bucket Heaped cap0.80 yd³
Landscape Bucket Height22 in
Landscape Bucket Length39 in
Landscape Bucket Weight0 in³

General Specifications

General Specifications specifications
Engine Power HP (KW)62 (46) Starting 2016 Model Year
Operating Width IN. (CM)65 (165) Starting 2016 Model Year
OPERATING LOAD LBS. (KG)1900 (862) Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating1,900 lb
Operating Width65 in
Bucket Width66 in
Standard hydraulic pump output18.5 gal/min
System pressure230 psi
High flow pump output26.5 gal/min

Performance

Performance specifications
Curl1.6 s
Dump2.0 s
Lift arm pathVertical
Lower (power down)2.7 s
Raise (lifting)4.3 s
Rated operating capacity (ISO 14397)1,900 lb

Speeds

Speeds specifications
Single speed12.0 mph
