Wacker Neuson

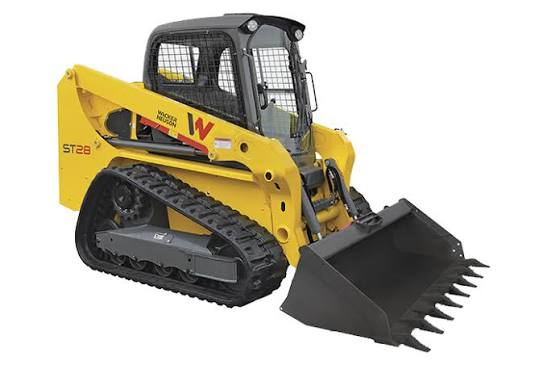

ST28
- Operating Weight
- 7,829 lb
- Max Speed - high range
- 10.0 mph
- Displacement
- 152 in³
- Gross Power
- 74.0 hp
1 / 5
Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 7,829 lb |
|---|---|
| Max Speed - high range | 10.0 mph |
| Max Speed - low range | 7.0 mph |
| Fuel Capacity | 30.0 gal |
Engine
| Engine Model | KDI 2504 TCR |
|---|---|
| Displacement | 152 in³ |
| Power Measured @ | 2,750 rpm |
| Gross Power | 74.0 hp |
| Engine Make | Kohler |
Hydraulic System
| Pump Flow | 2.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,500 psi |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 84 in |
| Reach at Max Lift and Dump | 29 in |
| Width Over Tracks | 13 in |
| Length with Bucket | 137 in |
| Clearance at Max Lift and Dump | 93 in |
| Length - without Bucket | 107 in |
General Specifications
| Operating Width IN. (CM) | 67.1 (170) — Starting 2019 Model Year |
|---|---|
| Engine Power HP (KW) | 74 (55) — Starting 2019 Model Year |
| OPERATING LOAD LBS. (KG) | 2,800 (1,270) — Starting 2017 Model Year |
| Rated Operating Capacity LBS (KG) 50% | 1,960 (889) — Starting 2021 Model Year |
| RATED OPERATING CAPACITY LBS. (35%) | 1,960 (889) — Starting 2019 Model Year |
Loader
| Tipping Angle | 42 ° |
|---|---|
| Operating Width | 67 in |
| Operating Load Rating | 2,800 lb |
| Boom breakout force | 5,000 lb |
