Wacker Neuson
ASV
PT-70
Compact Track Loader
32 specifications

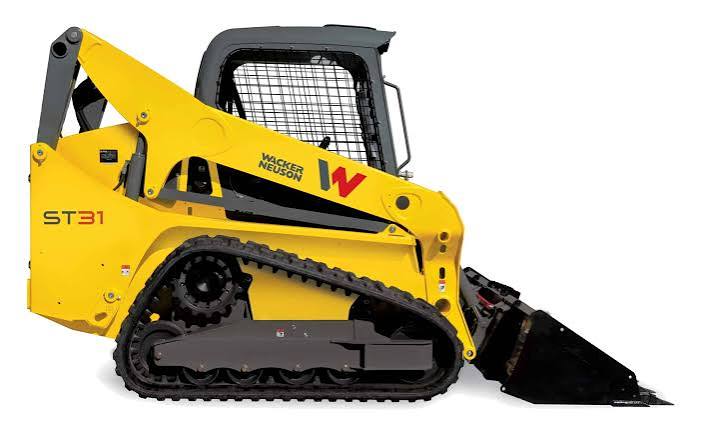

Wacker Neuson
ST31
- Operating Weight
- 8,095 lb
- Max Speed - high range
- 10.0 mph
- Displacement
- 152 in³
- Gross Power
- 74.0 hp
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 8,095 lb |
|---|---|
| Max Speed - high range | 10.0 mph |
| Max Speed - low range | 7.0 mph |
| Fuel Capacity | 30.0 gal |
Engine
| Engine Model | KDI 2504 TCR |
|---|---|
| Displacement | 152 in³ |
| Power Measured @ | 2,750 rpm |
| Gross Power | 74.0 hp |
| Engine Make | Kohler |
Hydraulic System
| Pump Flow | 2.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,500 psi |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 84 in |
| Reach at Max Lift and Dump | 36 in |
| Width Over Tracks | 13 in |
| Length with Bucket | 137 in |
| Clearance at Max Lift and Dump | 98 in |
| Length - without Bucket | 107 in |
General Specifications
| Operating Width IN. (CM) | 64 (163) Starting 2025 Model Year |
|---|---|
| Engine Power HP (KW) | 74 (55) Starting 2019 Model Year |
| OPERATING LOAD LBS. (KG) | 3,100 (1,406) Starting 2017 Model Year |
| Rated Operating Capacity LBS (KG) 50% | 2,170 (984) Starting 2024 Model Year |
| Rated Operating Capacity LBS (KG) 35% | 2,170 (984) Starting 2025 Model Year |
| RATED OPERATING CAPACITY LBS. (35%) | 2,170 (984) Starting 2019 Model Year |
Loader
| Tipping Angle | 42 ° |
|---|---|
| Operating Width | 67 in |
| Operating Load Rating | 3,100 lb |
| Boom breakout force | 5,000 lb |
