Wacker Neuson

SW17

Skid Steer Loader

Operating Weight
6,245 lb
Max Speed
12.0 mph
Gross Power
74.0 hp
All skid steer loaders

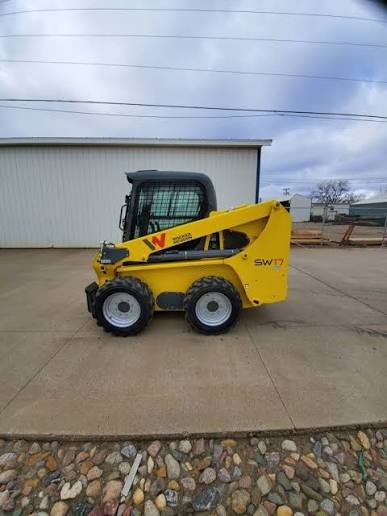

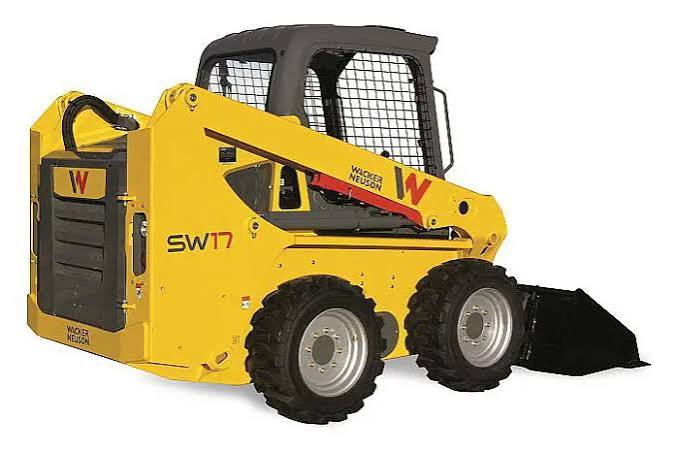

Wacker Neuson SW17 Skid Steer Loader
1 / 5
Image 1 of 5
Image: beaconequipment.com.au

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,245 lb
Max Speed12.0 mph
Fuel Capacity30.0 gal
Hydraulic System Fluid Capacity2.9 gal
Tire Size10 x 16.5

Engine

Engine specifications
Engine ModelKDI 2504 TCR
Displacement152 in³
Power Measured @2,750 rpm
Gross Power74.0 hp
Engine MakeKohler

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.0 gal/min
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab81 in
Wheelbase44 in
Width Over Tires66 in
Reach at Max Lift and Dump28 in
Length with Bucket135 in
Clearance at Max Lift and Dump91 in
Length w/o Bucket107 in

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55) — Starting 2019 Model Year
Operating Width IN. (CM)65.9 (167) — Starting 2019 Model Year
OPERATING LOAD LBS. (KG)1,700 (771) — Starting 2017 Model Year
Rated Operating Capacity LBS (KG) 50%1,700 (771) — Starting 2019 Model Year

Loader

Loader specifications
Operating Load Rating1,700 lb
Operating Width66 in
bucket breakout force (ISO 14397)5,300 lb
Boom breakout force5,000 lb
