Wacker Neuson

SW24

Skid Steer Loader

Operating Weight
7,865 lb
Max Speed
11.2 mph
Gross Power
74.0 hp
All skid steer loaders

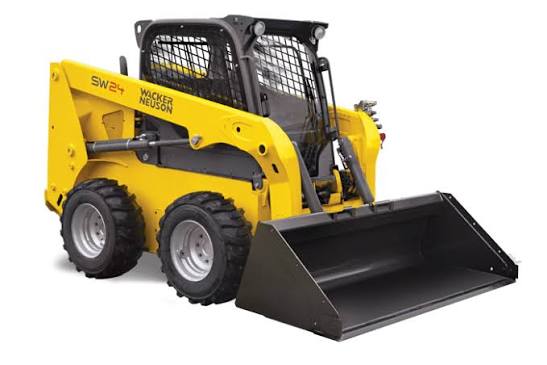

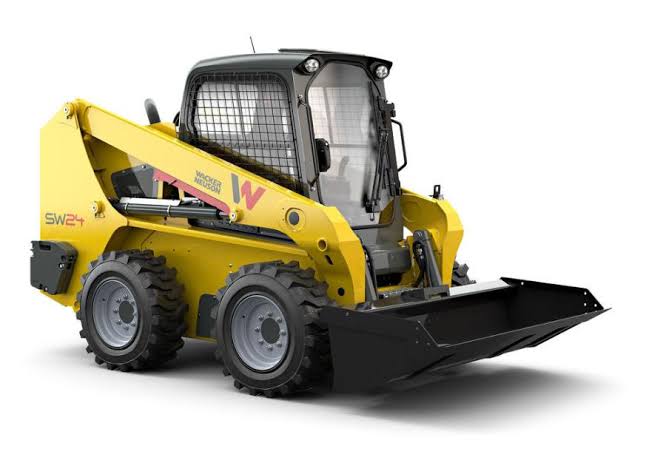

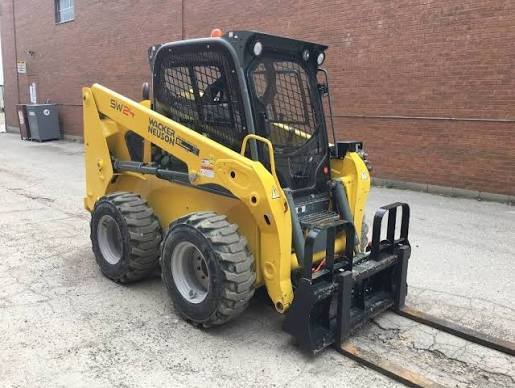

Wacker Neuson SW24 Skid Steer Loader
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,865 lb
Max Speed11.2 mph
Fuel Capacity24.3 gal
Hydraulic System Fluid Capacity22.5 gal

Engine

Engine specifications
Displacement152 in³
Power Measured @2,750 rpm
Gross Power74.0 hp

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,338 psi

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab83 in
Wheelbase47 in
Width Over Tires71 in
Reach at Max Lift and Dump23 in
Length with Bucket145 in
Clearance at Max Lift and Dump96 in
Length w/o Bucket117 in

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55) Starting 2021 Model Year
Operating Width IN. (CM)72 (183) Starting 2021 Model Year
Rated Operating Capacity LBS (KG) 50%2,400 (1,089) Starting 2021 Model Year

Loader

Loader specifications
Bucket Width72 in
bucket breakout force (ISO 14397)6,717 lb
Boom breakout force5,309 lb
