Wacker NeusonWacker Neuson
WL18
Wheel Loader
22 specifications
1 / 5

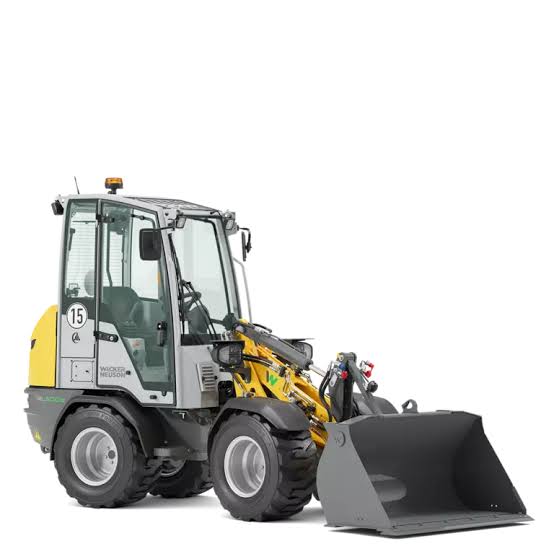

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 5,556 lb |
|---|---|
| Fuel Capacity | 11.9 gal |
| Tire Size | 10 x 16.5 EM |
| Hydraulic System Fluid Capacity | 7.2 gal |
| Static Tipping Weight | 3,585 lb |
| Turning Radius | 115 in |
| Rear Axle Oscillation | 24 ° |
Engine
| Engine Model | 404 C-15 |
|---|---|
| Gross Power | 33.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 11.9 gal/min |
|---|---|
| Relief Valve Setting | 2,683 psi |
| Pump Type | Gear pump |
Dimensions
| Height - Top of Cab | 88 in |
|---|---|
| Wheelbase | 64 in |
| Width Over Tires | 48 in |
| Length with Bucket on Ground | 162 in |
| Hinge Pin - Max Height | 113 in |
Transmission
| Max Speed - Forward | 12.4 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 81 in |
| Breakout Force | 4,471 lb |
