Wirtgen

W100

Cold Planer

Operating Weight - Full Load
33,069 lb
Cutting Width
40 in
Displacement
370 in³
Gross Power
208.0 hp
All cold planers/milling machines

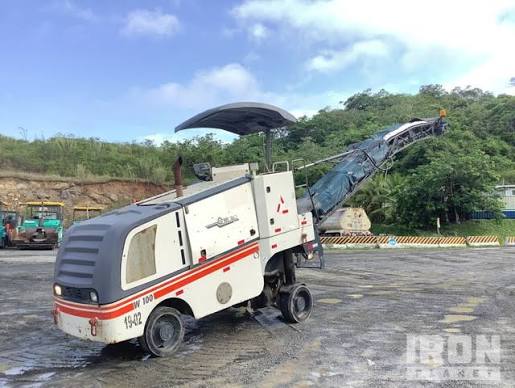

Wirtgen W100 Cold Planer
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load33,069 lb
Operating Speed1.1 mph
Travel Speed3.8 mph
Fuel Capacity118.9 gal
Water Spray System Fluid Capacity237.8 gal
Shipping Weight - Empty29,763 lb
Hydraulic System Fluid Capacity21.2 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelTCD 2012 L06 2V
Displacement370 in³
Power Measured @2,300 rpm
Gross Power208.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Shipping Height104 in
Shipping Length187 in
Shipping Width90 in
Operating Length414 in
Max Operating Height180 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width20 in
Collecting Conveyor Width20 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width40 in
Cutting Depth12 in
Number of Tools100
Tool Spacing1 in
Cutter Diameter37 in

Comparable machines

Other cold planers/milling machines in a similar weight class.
