BOMAG

MP1300

Cold Planer

Cutting Width
52 in
Gross Power
275.0 hp
All cold planers/milling machines

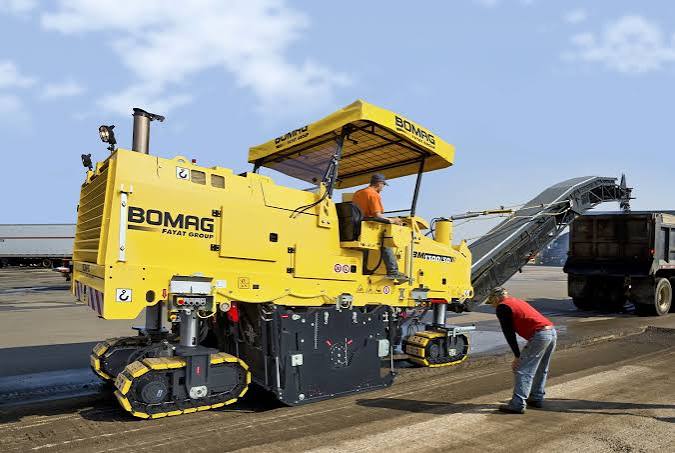

BOMAG MP1300 Cold Planer
1 / 5
Image 1 of 5
Image: centralequipmentco.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Speed1.0 mph
Travel Speed3.9 mph
Fuel Capacity132.1 gal
Water Spray System Fluid Capacity264.2 gal
Shipping Weight - Empty40,565 lb
Hydraulic System Fluid Capacity33.1 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model3126B
Gross Power275.0 hp

Dimensions

Dimensions specifications
Shipping Height109 in
Shipping Length402 in
Shipping Width88 in
Operating Length492 in
Max Operating Height191 in
Max Truck Clearance168 in

Track

Track specifications
Number of Track Units4
Front Track Width10 in
Rear Track Width10 in
Front Track Length29 in
Rear Track Length29 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width24 in
Collecting Conveyor Width24 in
Discharge Conveyor Swing (R/L)35 °

Rotary Cutter

Rotary Cutter specifications
Cutting Width52 in
Cutting Depth13 in
Number of Tools124
Tool Spacing1 in
Cutter Diameter39 in
