Wirtgen

W150

Cold Planer

Operating Weight - Full Load
47,752 lb
Cutting Width
48 in
Displacement
543 in³
Gross Power
370.0 hp
All cold planers/milling machines

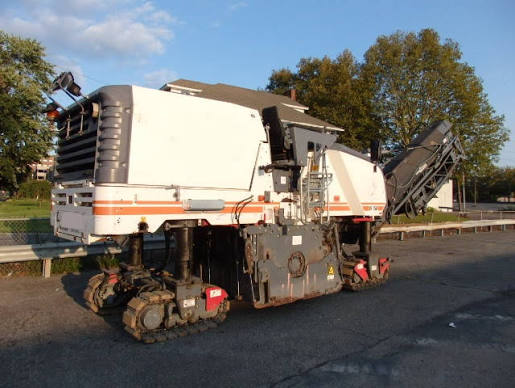

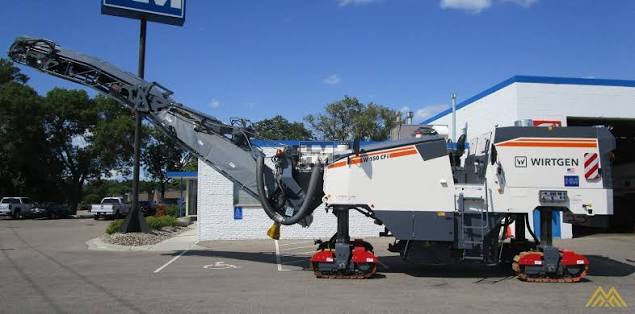

Wirtgen W150 Cold Planer
1 / 5
Image 1 of 5
Image: pavingequipment.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load47,752 lb
Operating Speed1.2 mph
Travel Speed3.3 mph
Fuel Capacity214.0 gal
Water Spray System Fluid Capacity567.9 gal
Shipping Weight - Empty41,227 lb
Hydraulic System Fluid Capacity31.8 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelQSL9
Displacement543 in³
Power Measured @2,100 rpm
Gross Power370.0 hp
Net Power350.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Shipping Height119 in
Shipping Length258 in
Shipping Width97 in
Operating Length510 in
Max Operating Height178 in

Track

Track specifications
Number of Track Units4
Front Track Width10 in
Rear Track Width10 in
Front Track Length54 in
Rear Track Length54 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width24 in
Collecting Conveyor Width26 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width48 in
Cutting Depth13 in
Number of Tools115
Tool Spacing1 in
Cutter Diameter39 in
