Wirtgen
Dynapac
PL2000S
Cold Planer
19 specifications

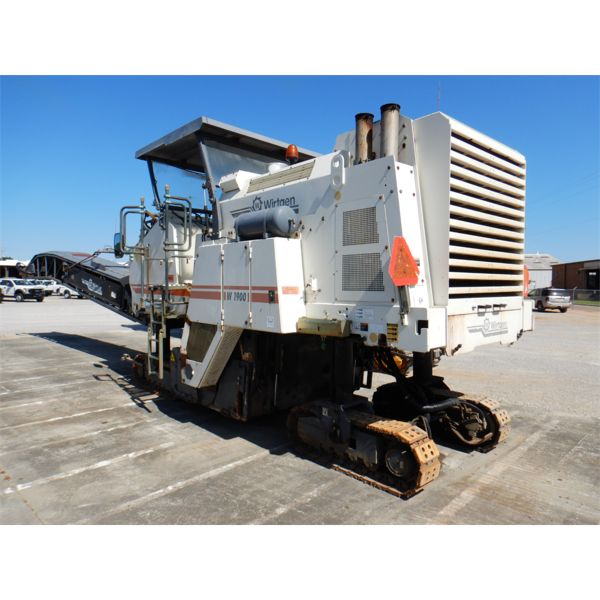

Wirtgen
W1900
- Operating Weight - Full Load
- 61,641 lb
- Cutting Width
- 79 in
- Displacement
- 970 in³
- Gross Power
- 469.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight - Full Load | 61,641 lb |
|---|---|
| Operating Speed | 1.1 mph |
| Travel Speed | 2.8 mph |
| Fuel Capacity | 224.6 gal |
| Water Spray System Fluid Capacity | 422.7 gal |
| Shipping Weight - Empty | 55,998 lb |
| Hydraulic System Fluid Capacity | 71.4 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | OM502LA |
|---|---|
| Displacement | 970 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 469.0 hp |
| Net Power | 455.0 hp |
| Number of Cylinders | 8 |
Dimensions
| Shipping Height | 119 in |
|---|---|
| Shipping Length | 265 in |
| Shipping Width | 101 in |
| Operating Length | 534 in |
| Max Operating Height | 178 in |
Track
| Number of Track Units | 4 |
|---|---|
| Front Track Width | 10 in |
| Rear Track Width | 10 in |
| Front Track Length | 64 in |
| Rear Track Length | 64 in |
Conveyor System
| Discharge Conveyor Width | 32 in |
|---|---|
| Collecting Conveyor Width | 32 in |
| Discharge Conveyor Swing (R/L) | 45 ° |
Rotary Cutter
| Cutting Width | 79 in |
|---|---|
| Cutting Depth | 13 in |
| Number of Tools | 162 |
| Tool Spacing | 1 in |
| Cutter Diameter | 39 in |
Comparable machines
Other cold planers/milling machines in a similar weight class.
