Caterpillar

PM310 Track

Cold Planer

Cutting Width
473 in
Gross Power
325.0 hp
All cold planers/milling machines

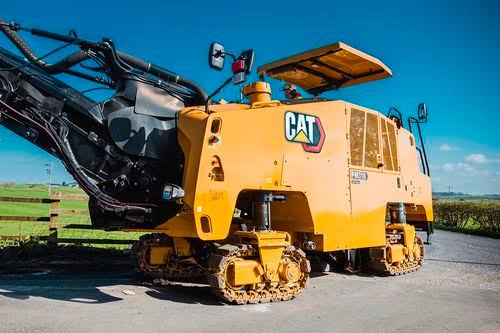

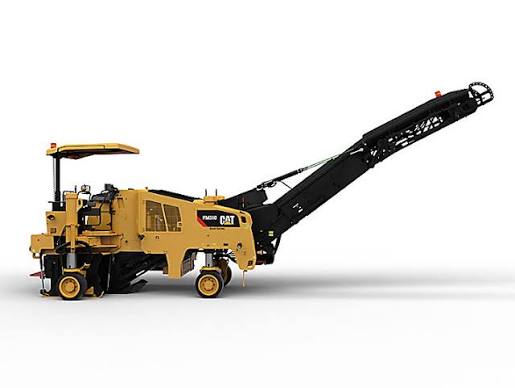

Caterpillar PM310 Track Cold Planer
1 / 5
Image 1 of 5
Image: mustangcat.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Speed1.2 mph
Inside Turn Radius76 in
Maximum Travel Speed3.4 mph

Engine

Engine specifications
Engine ModelC9.3 ACERT
Gross Power325.0 hp

Weights

Weights specifications
Operating Weight - With Full Water Tank47,746 lb
Shipping Weight - With Empty Water Tank44,187 lb

Dimensions

Dimensions specifications
Shipping Width101 in
Operating Width101 in
Maximum Operating Height203 in
Minimum Operating Height119 in
Maximum Truck Clearance186 in
Shipping Length - Base Machine233 in
Shipping Maximum Height118 in
Operating Length - Conveyor Up438 in
Shipping Length - With Conveyor Folded367 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity158.5 gal
Water Spray System333.0 gal

Conveyor System

Conveyor System specifications
Discharge Conveyor Width24 in
Collecting Conveyor Width22 in
Collecting Conveyor Speed9.4 mph
Discharge Conveyor Maximum Speed9.4 mph
Discharge Conveyor Swing - From Center60 °
Discharge Conveyor Length283 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width473 in

Rotor Assembly

Rotor Assembly specifications
Maximum Cutting Depth13 in
Number of Cutting Tools97
