Wirtgen

W2100

Cold Planer

Operating Weight - Full Load
86,201 lb
Cutting Width
88 in
Displacement
1,106 in³
Gross Power
700.0 hp
All cold planers/milling machines

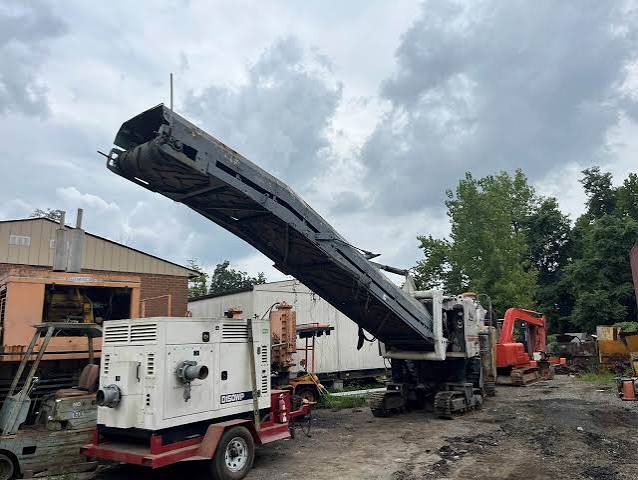

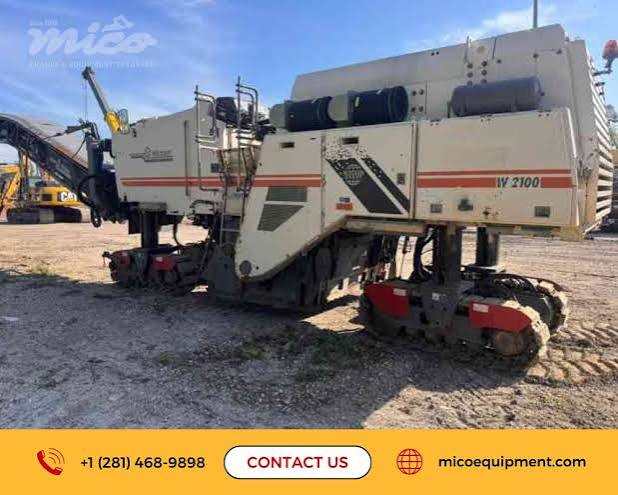

Wirtgen W2100 Cold Planer
1 / 5
Image 1 of 5
Image: eu.ironplanet.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load86,201 lb
Travel Speed3.2 mph
Fuel Capacity343.5 gal
Water Spray System Fluid Capacity1,188.7 gal
Shipping Weight - Empty73,855 lb
Hydraulic System Fluid Capacity79.3 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelC18 ATAAC
Displacement1,106 in³
Power Measured @2,100 rpm
Gross Power700.0 hp
Number of Cylinders8

Dimensions

Dimensions specifications
Shipping Height119 in
Shipping Length347 in
Shipping Width109 in
Operating Length599 in
Max Operating Height194 in

Track

Track specifications
Number of Track Units4
Front Track Width14 in
Rear Track Width14 in
Front Track Length79 in
Rear Track Length79 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width39 in
Collecting Conveyor Width39 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width88 in
Cutting Depth13 in
Number of Tools186
Tool Spacing1 in
Cutter Diameter43 in
