Yanmar

S165R-1

Skid Steer Loader

Operating Weight
6,122 lb
Max Speed
7.1 mph
Gross Power
68.4 hp
All skid steer loaders

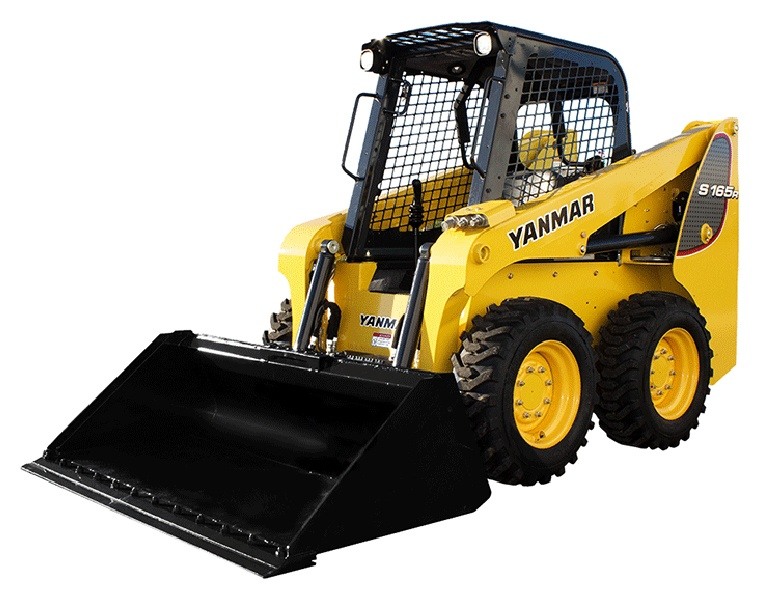

Yanmar S165R-1 Skid Steer Loader
1 / 5
Image 1 of 5
Image: allaroundpower.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,122 lb
Max Speed7.1 mph
Fuel Capacity16.6 gal
Tire Size10.00 x 16.5 HD

Engine

Engine specifications
Engine Model4TNV98C-NMS2
Displacement201 in³
Power Measured @2,800 rpm
Gross Power68.4 hp
Engine MakeYanmar

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,000 psi
Auxiliary hydraulic flow18.9 gal/min
Hydraulic Reservoir11.0 gal

Dimensions

Dimensions specifications
Ground Clearance6 in
Height - Top of Cab154 in
Wheelbase40 in
Overall Width64 in
Reach at Max Lift and Dump33 in
Length with Bucket122 in
Dump Height95 in
Length w/o Bucket95 in
Dump angle38 °
Hinge pin height - fully raised119 in
Rollback - Ground Level28 °
front Departure angle21 °
Ground Height36 in
Overall height, ROPS cab77 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity1,649 lb

General Specifications

General Specifications specifications
Engine Power HP (KW)69.9 (52) — Starting 2016 Model Year
Operating Width IN. (CM)63.2 (161) — Starting 2016 Model Year
OPERATING LOAD LBS. (KG)1,650 (748) — Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating1,650 lb
Tipping Angle3,300 °
Operating Width63 in
Bucket Width62 in

Electrical System

Electrical System specifications
Alternator—
Battery12-volt (950 CCA)
Starter size3.1 hp
