Yanmar

S190R-1

Skid Steer Loader

Operating Weight
6,881 lb
Max Speed
12.5 mph
Gross Power
68.4 hp
All skid steer loaders

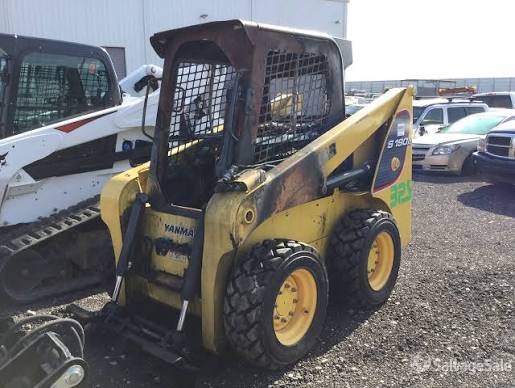

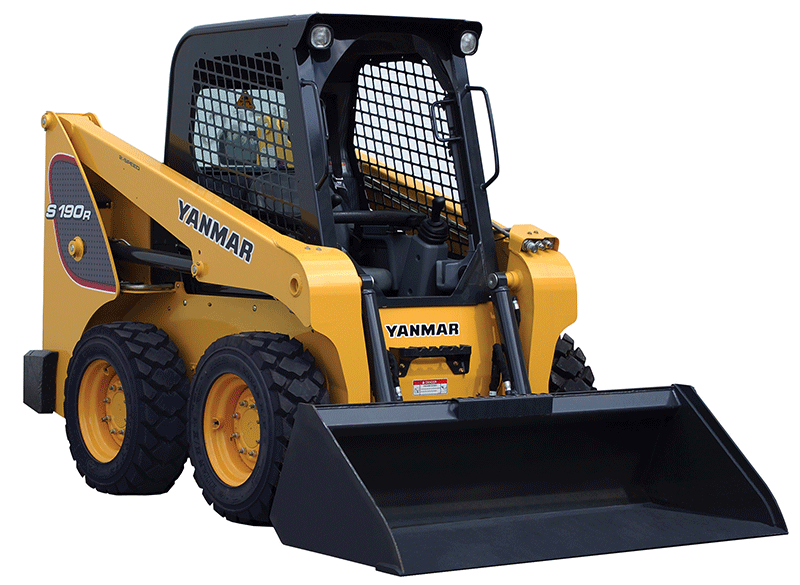

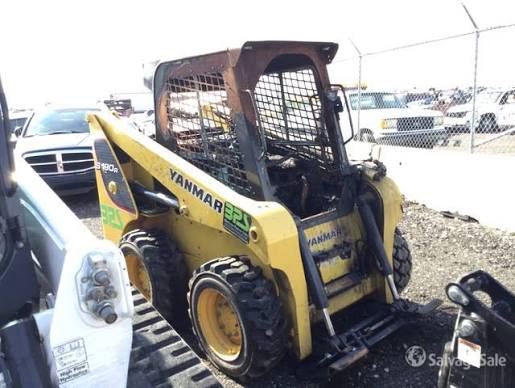

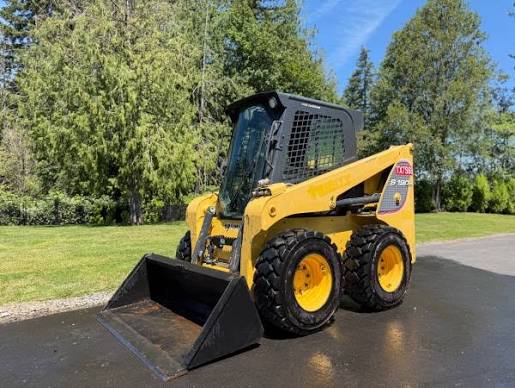

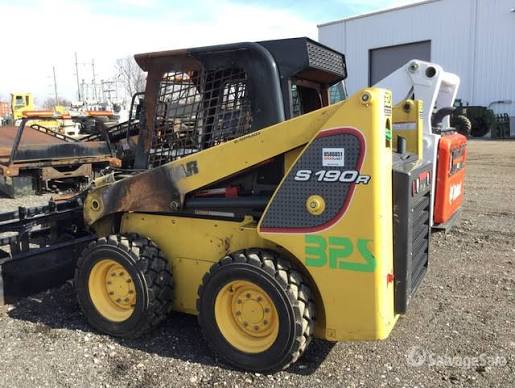

Yanmar S190R-1 Skid Steer Loader
1 / 5
Image 1 of 5
Image: rockytopequip.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,881 lb
Max Speed12.5 mph
Fuel Capacity16.6 gal
Tire Size10.00 x 16.5 HD

Engine

Engine specifications
Engine Model4TNV98C-NMS
Displacement203 in³
Power Measured @2,500 rpm
Gross Power68.4 hp
Engine MakeYanmar

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity31.5 gal/min
Relief Valve Pressure3,000 psi
Auxiliary hydraulic flow18.5 gal/min
Hydraulic Reservoir11.0 gal

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab158 in
Wheelbase43 in
Overall Width65 in
Reach at Max Lift and Dump23 in
Length with Bucket127 in
Dump Height91 in
Length w/o Bucket95 in
Dump angle42 °
Hinge pin height - fully raised121 in
Rollback - Ground Level26 °
front Departure angle25 °
Overall height, ROPS cab80 in
Ground Height39 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity1,900 lb

General Specifications

General Specifications specifications
Engine Power HP (KW)69 (51.7) — Starting 2016 Model Year
Operating Width IN. (CM)64.5 (164) — Starting 2016 Model Year
OPERATING LOAD LBS. (KG)1,900 (862) — Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating1,900 lb
Tipping Angle3,801 °
Operating Width65 in
Bucket Width66 in

Electrical System

Electrical System specifications
Alternator—
Battery12-volt (950 CCA)
Starter size4.0 hp
