Yanmar

S220R-1

Skid Steer Loader

Operating Weight
7,981 lb
Max Speed
11.4 mph
Gross Power
70.7 hp
All skid steer loaders

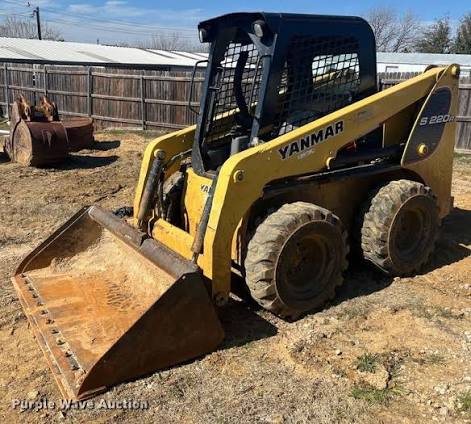

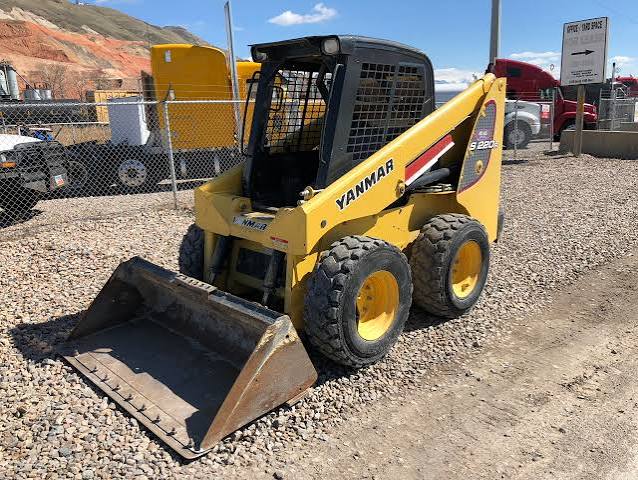

Yanmar S220R-1 Skid Steer Loader
1 / 5
Image 1 of 5
Image: allaroundpower.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,981 lb
Max Speed11.4 mph
Fuel Capacity18.0 gal
Tire Size12.00 x 16.5 HD

Engine

Engine specifications
Engine Model4TNV98CT-NMS
Displacement203 in³
Power Measured @2,500 rpm
Gross Power70.7 hp
Engine MakeYanmar

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,300 psi
Auxiliary hydraulic flow23.6 gal/min
Hydraulic Reservoir12.0 gal

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab162 in
Wheelbase43 in
Overall Width66 in
Reach at Max Lift and Dump27 in
Length with Bucket137 in
Dump Height95 in
Length w/o Bucket106 in
Dump angle40 °
Hinge pin height - fully raised123 in
Rollback - Ground Level28 °
front Departure angle25 °
Ground Height40 in
Overall height, ROPS cab81 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity2,200 lb

General Specifications

General Specifications specifications
Engine Power HP (KW)72 (53.7) — Starting 2016 Model Year
Operating Width IN. (CM)65.5 (166.4) — Starting 2016 Model Year
OPERATING LOAD LBS. (KG)2,200 (998) — Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating2,200 lb
Tipping Angle4,398 °
Operating Width66 in
Bucket Width70 in

Electrical System

Electrical System specifications
Alternator—
Battery12-volt (950 CCA)
Starter size4.0 hp
