Yanmar

S270V-1

Skid Steer Loader

Operating Weight
8,151 lb
Max Speed
12.0 mph
Gross Power
70.7 hp
All skid steer loaders

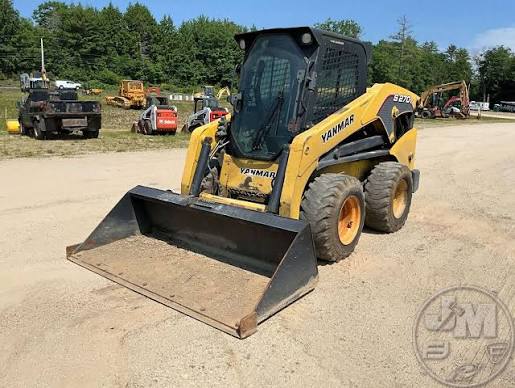

Yanmar S270V-1 Skid Steer Loader
1 / 5
Image 1 of 5
Image: seoffroad.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,151 lb
Max Speed12.0 mph
Fuel Capacity20.0 gal
Tire Size12.00 x 16.5 HD

Engine

Engine specifications
Engine Model4TNV98CT - NMS
Displacement203 in³
Power Measured @2,500 rpm
Gross Power70.7 hp
Engine MakeYanmar

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.9 gal/min
Relief Valve Pressure3,200 psi
Auxiliary hydraulic flow23.6 gal/min
Hydraulic Reservoir10.5 gal

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab168 in
Wheelbase50 in
Overall Width70 in
Reach at Max Lift and Dump32 in
Length with Bucket149 in
Dump Height101 in
Length w/o Bucket118 in
Dump angle42 °
Hinge pin height - fully raised130 in
Rollback - Ground Level29 °
front Departure angle25 °
Overall height, ROPS cab81 in
Ground Height40 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity2,701 lb

General Specifications

General Specifications specifications
Engine Power HP (KW)72 (53.7) — Starting 2016 Model Year
Operating Width IN. (CM)69.5 (176.5) — Starting 2016 Model Year
OPERATING LOAD LBS. (KG)2,700 (1225) — Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating2,700 lb
Tipping Angle5,399 °
Operating Width70 in
Bucket Width70 in

Electrical System

Electrical System specifications
Alternator—
Battery12-volt (950 CCA)
Starter size4.0 hp
