YTO

YZC8

Smooth Drum Roller

Operating Weight
17,637 lb
Max Speed
8.1 mph
Drum Width
68 in
Gross Power
68.4 hp
All smooth drum rollers

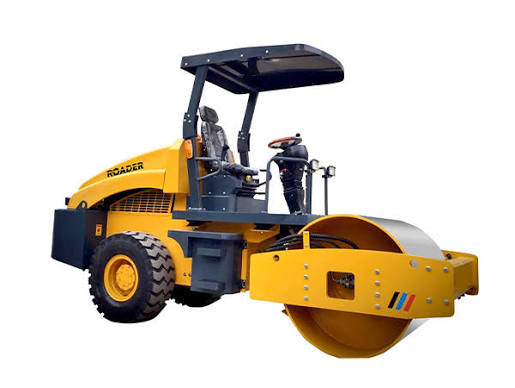

YTO YZC8 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: ytocorp.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,637 lb
Max Speed8.1 mph
Fuel Capacity33.1 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity18.5 gal
Turning Radius241 in

Engine

Engine specifications
Engine ModelF4L912
Power Measured @2,300 rpm
Gross Power68.4 hp

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab113 in
Wheelbase9 in
Overall Length12 in
Overall Width77 in

Drum

Drum specifications
Drum Width68 in
Drum Diameter41 in
Vibration Frequency 155 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High40,466 lb
Vibration Frequency 240 vpm
Static Linear Load108 lb-ft
Centrifugal Force - Low31,024 lb
Nominal Amplitude - Low0 in
