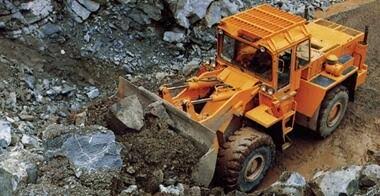

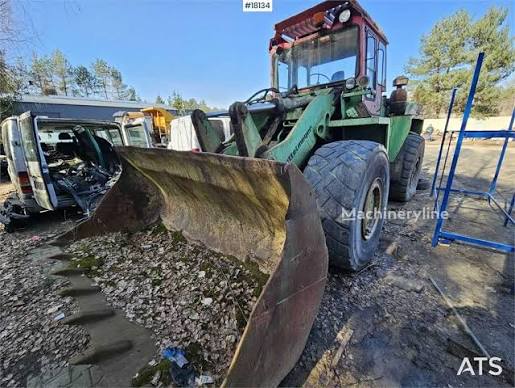

Zettelmeyer
ZL4001B
- Operating Weight
- 52,470 lb
- Bucket Capacity - heaped
- 5.30 yd³
- Gross Power
- 302.0 hp
- Net Power
- 269.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 52,470 lb |
|---|---|
| Fuel Capacity | 111.0 gal |
| Tire Size | 26.5-25PR(L2) |
| Hydraulic System Fluid Capacity | 121.6 gal |
| Static Tipping Weight | 42,770 lb |
| Operating Voltage | 24 V |
| Turning Radius | 272 in |
| Engine Oil Fluid Capacity | 7.4 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 11.1 gal |
| Rear Axle/Diff Fluid Capacity | 11.1 gal |
| Transmission Fluid Capacity | 10.6 gal |
Engine
| Engine Model | F 10L 413F |
|---|---|
| Displacement | 974 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 302.0 hp |
| Net Power | 269.0 hp |
| Number of Cylinders | 10 |
| Aspiration | direct |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 99.9 gal/min |
|---|---|
| Raise Time | 6.8 s |
| Lower Time | 4.6 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 2,610 psi |
| Pump Type | gear tandem |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 134 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 340 in |
| Hinge Pin - Max Height | 174 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.30 yd³ |
|---|---|
| Bucket Capacity - struck | 4.60 yd³ |
| Dump Clearance at Max Raise | 121 in |
| Breakout Force | 42,714 lb |
| Bucket Width | 119 in |
