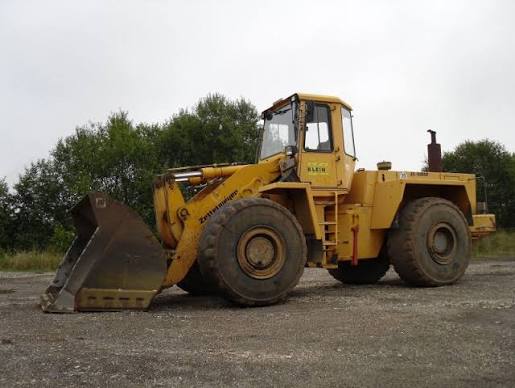

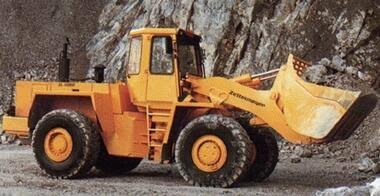

Zettelmeyer
ZL4002
- Operating Weight
- 46,958 lb
- Bucket Capacity - heaped
- 4.60 yd³
- Gross Power
- 250.0 hp
- Net Power
- 240.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 46,958 lb |
|---|---|
| Fuel Capacity | 95.2 gal |
| Tire Size | 26.5-25 16PR |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Static Tipping Weight | 37,920 lb |
| Operating Voltage | 24 V |
| Turning Radius | 272 in |
| Engine Oil Fluid Capacity | 7.1 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 11.1 gal |
| Rear Axle/Diff Fluid Capacity | 8.2 gal |
| Transmission Fluid Capacity | 7.4 gal |
Engine
| Engine Model | LT 10-C 250 |
|---|---|
| Displacement | 623 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 250.0 hp |
| Net Power | 240.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 78.8 gal/min |
|---|---|
| Raise Time | 6.5 s |
| Lower Time | 4.6 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 3,336 psi |
| Pump Type | tandem axial piston pump |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 138 in |
| Wheelbase | 141 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 330 in |
| Hinge Pin - Max Height | 174 in |
Transmission
| Max Speed - Forward | 23.7 mph |
|---|---|
| Max Speed - Reverse | 14.3 mph |
| Transmission Type | full powershift countershaft |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.60 yd³ |
|---|---|
| Bucket Capacity - struck | 4.00 yd³ |
| Dump Clearance at Max Raise | 130 in |
| Breakout Force | 50,582 lb |
| Bucket Width | 119 in |
