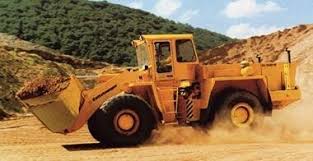

Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 52,250 lb |
|---|---|
| Fuel Capacity | 118.9 gal |
| Tire Size | 26.5R25 |
| Hydraulic System Fluid Capacity | 105.7 gal |
| Static Tipping Weight | 40,786 lb |
| Operating Voltage | 24 V |
| Turning Radius | 274 in |
| Engine Oil Fluid Capacity | 7.4 gal |
| Rear Axle Oscillation | 16 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 5.5 gal |
| Rear Axle/Diff Fluid Capacity | 5.5 gal |
| Transmission Fluid Capacity | 11.9 gal |
Engine
| Engine Model | F 10L 413F |
|---|---|
| Displacement | 974 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 269.0 hp |
| Number of Cylinders | 10 |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 99.6 gal/min |
|---|---|
| Raise Time | 6.8 s |
| Lower Time | 4.6 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 2,611 psi |
| Pump Type | gear type tandem |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 138 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 349 in |
| Hinge Pin - Max Height | 176 in |
Transmission
| Max Speed - Forward | 38.6 mph |
|---|---|
| Max Speed - Reverse | 38.6 mph |
| Transmission Type | full powershift planetary |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 7.90 yd³ |
|---|---|
| Bucket Capacity - struck | 4.60 yd³ |
| Dump Clearance at Max Raise | 130 in |
| Breakout Force | 46,086 lb |
| Bucket Width | 119 in |
