Agco

DT220A

Tractor

Operating Weight
19,952 lb
Displacement
513 in³
Power Measured @
2,200 rpm
Gross Power
260.0 hp
All tractors

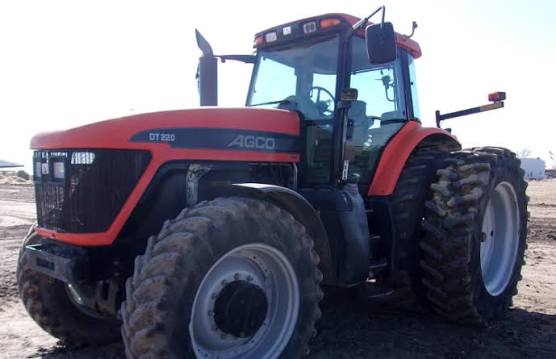

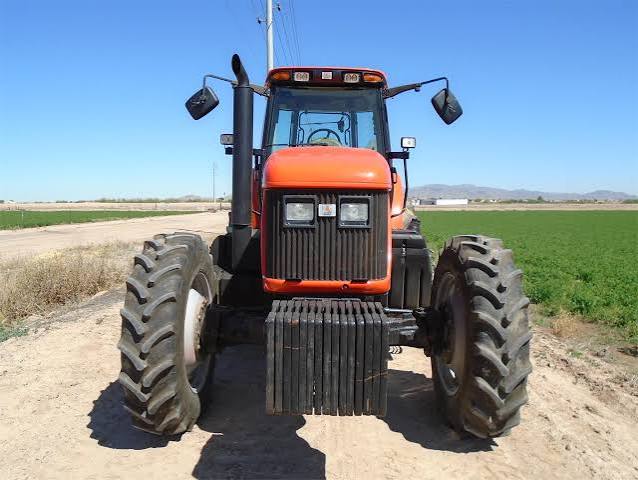

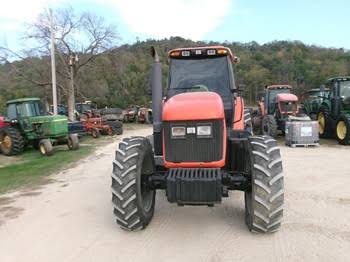

Agco DT220A Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,952 lb
Fuel Capacity158.6 gal
3 Point Hitch Lift Capacity @ 24 inches14,400 lb
3 Point Hitch TypeCategory III

Engine

Engine specifications
Displacement513 in³
Power Measured @2,200 rpm
Gross Power260.0 hp
Aspirationwastegate
PTO Power220.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity39.7 gal/min
Number of Remote Control Valves4

Dimensions

Dimensions specifications
Height - Top of Cab125 in
Wheelbase121 in
Overall Length17 in

Transmission

Transmission specifications
Max Speed32.0 mph
Number of Forward Gears2
Transmission TypePowerMaxx CVT

Axles

Axles specifications
Final Driveinboard planetary
