Airman

AX17U-4

Mini Excavator

Operating Weight
3,902 lb
Max Digging Depth
96 in
Net Power
14.8 hp
All mini excavators

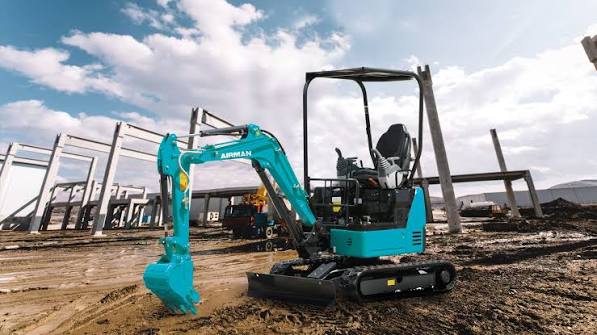

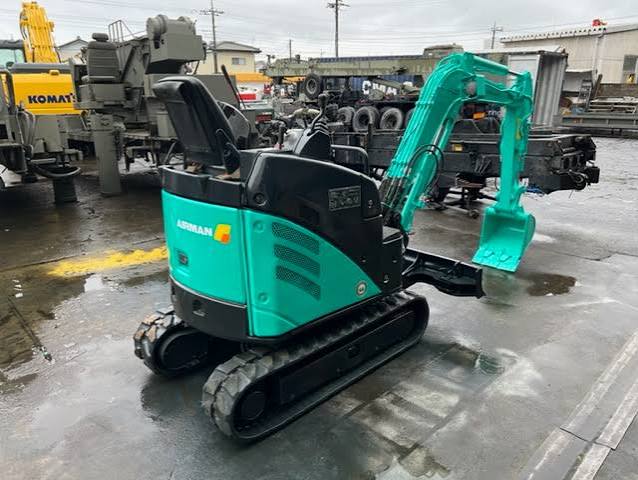

Airman AX17U-4 Mini Excavator
1 / 5
Image 1 of 5
Image: tradeearthmovers.com.au

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,902 lb
Hydraulic Pump Flow Capacity5.6 gal/min
Hydraulic System Relief Valve Pressure3,046 psi

Engine

Engine specifications
Engine Model3TNV70
Displacement52 in³
Power Measured @2,400 rpm
Net Power14.8 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance7 in
Length of Track on Ground62 in
Tail Swing Radius28 in
Width to Outside of Tracks50 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.5 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth96 in
Max Reach Along Ground150 in
Max Vertical Wall Digging Depth73 in
Max Loading Height101 in
Shipping Length of Unit142 in
Shipping Height of Unit95 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
