Airman

AX40U-4

Mini Excavator

Operating Weight
9,656 lb
Max Digging Depth
132 in
Net Power
40.0 hp
All mini excavators

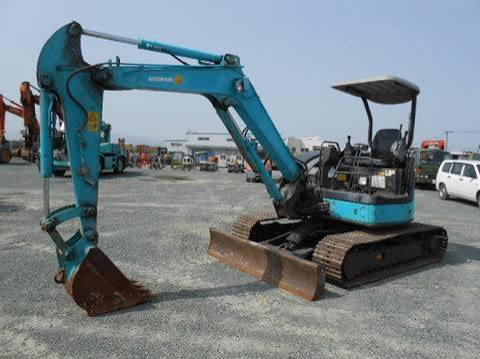

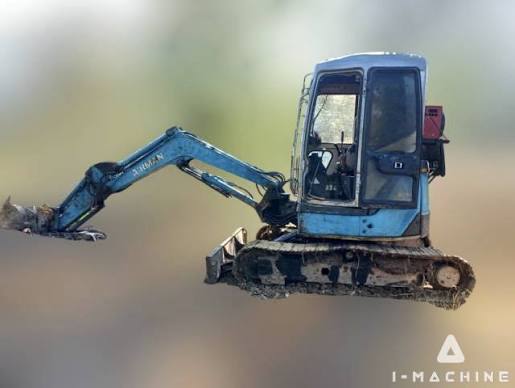

Airman AX40U-4 Mini Excavator
1 / 5
Image 1 of 5
Image: miniexcavatorcentre.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,656 lb
Hydraulic Pump Flow Capacity33.1 gal/min
Hydraulic System Relief Valve Pressure3,481 psi

Engine

Engine specifications
Engine Model4TNV88
Displacement134 in³
Power Measured @2,500 rpm
Net Power40.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance13 in
Length of Track on Ground79 in
Tail Swing Radius40 in
Width to Outside of Tracks78 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.8 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth132 in
Max Reach Along Ground227 in
Max Vertical Wall Digging Depth107 in
Max Loading Height155 in
Shipping Length of Unit211 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
