Ammann

ASC150D

Smooth Drum Roller

Operating Weight
31,703 lb
Max Speed
6.3 mph
Drum Width
87 in
All smooth drum rollers

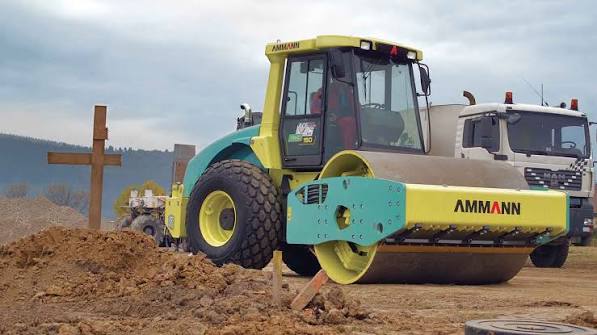

Ammann ASC150D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: tsmglobal.com.tr

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,703 lb
Max Speed6.3 mph
Fuel Capacity108.4 gal

Engine

Engine specifications
Engine ModelQSB4.5-C160
Net Power158.0 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab120 in
Wheelbase9 in
Overall Length19 in
Overall Width100 in
Drum Diameter - Front60 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26

Drum

Drum specifications
Drum Width87 in
Drum Diameter59 in
Vibration Frequency 129 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High53,280 lb
Vibration Frequency 235 vpm
Static Linear Load22 lb-ft
Centrifugal Force - Low73,063 lb
Nominal Amplitude - Low0 in
