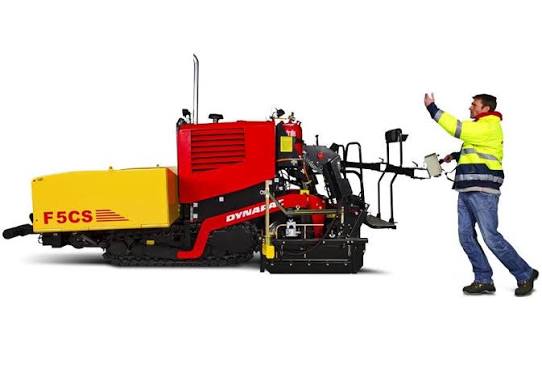

Dynapac
F5CS
Asphalt Paver
17 specifications
Antec
PW3500
- Operating Weight w/ Screed
- 15,432 lb
- Paving Width - max
- 178 in
- Gross Power
- 60.7 hp
- Length w/ Screed
- 194 in
1 / 5
Image 1 of 5
Specifications
10 data points
Operating Specifications
| Operating Weight w/ Screed | 15,432 lb |
|---|
Engine
| Engine Model | F4I 2011 |
|---|---|
| Power Measured @ | 1,700 rpm |
| Gross Power | 60.7 hp |
Dimensions
| Transport Width | 73 in |
|---|---|
| Transport Height | 94 in |
| Length w/ Screed | 194 in |
Hopper/Paver
| Paving Width - max | 178 in |
|---|---|
| Paving Speed - max | 0.4 mph |
| Hopper Capacity | 5 lb |

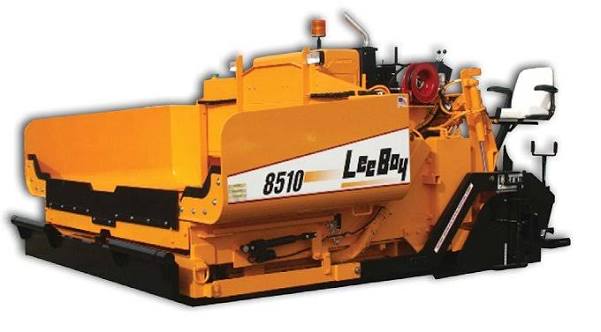

Comparable machines
Other asphalt pavers in a similar weight class.
