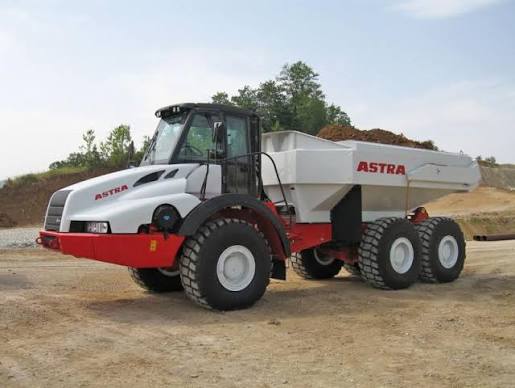

Astra
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Tire Size | 26.5R25 |
|---|
Engine
| Engine Model | Cursor 13 |
|---|---|
| Displacement | 781 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 405.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 1,364 lb-ft |
Weights
| Total Empty | 62,832 lb |
|---|
Dimensions
| Overall Length | 425 in |
|---|---|
| Overall Width | 126 in |
| Overall Height | 150 in |
Transmission
| Max Speed | 31.5 mph |
|---|---|
| Transmission Type | Auto |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 3 |
Dump
| Rated Payload | 69,446 lb |
|---|---|
| Raise Time | 11.0 s |
| Lower Time | 13.0 s |
| Capacity - Heaped | 26.20 yd³ |
