ASVASV
PT-70
Compact Track Loader
32 specifications
1 / 5

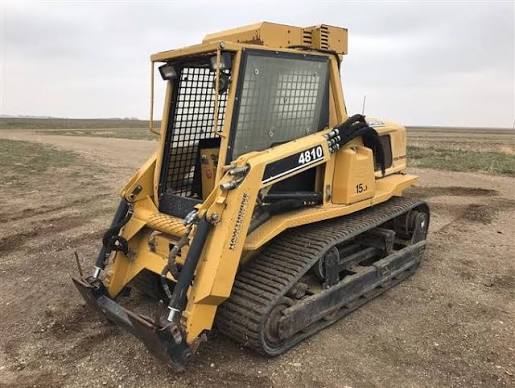

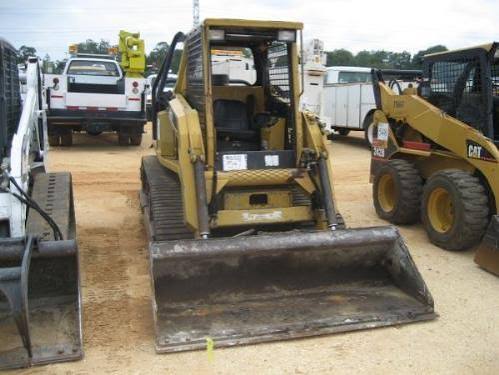

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 8,640 lb |
|---|---|
| Max Speed - high range | 6.0 mph |
| Fuel Capacity | 25.0 gal |
| Hydraulic System Fluid Capacity | 28.0 gal |
| Cooling System Fluid Capacity | 9.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 A |
| Engine Oil Capacity | 2.1 gal |
Engine
| Engine Model | 3054T |
|---|---|
| Displacement | 244 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 105.0 hp |
| Aspiration | Turbocharged |
| Peak Torque | 284 lb-ft |
Hydraulic System
| Pump Flow | 19.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,950 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 83 in |
| Width Over Tracks | 70 in |
| Length - without Bucket | 115 in |
Undercarriage
| Ground Pressure | 3 psi |
|---|---|
| Length of Track on Ground | 79 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 12 |
| Ground Contact Area | 2,826 in³ |
Loader
| Operating Load | 2,065 lb |
|---|---|
| Breakout Force | — |
