ASV

PT-100

Compact Track Loader

Operating Weight
10,150 lb
Max Speed - high range
11.5 mph
Displacement
268 in³
Gross Power
99.5 hp
All compact track loaders

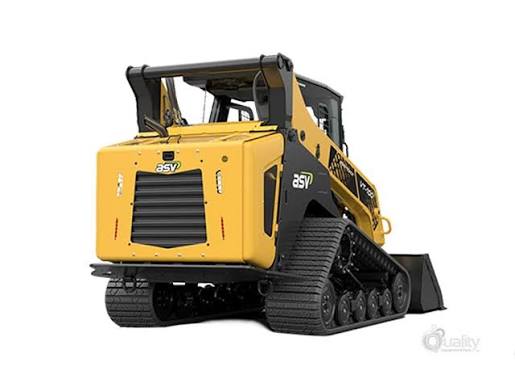

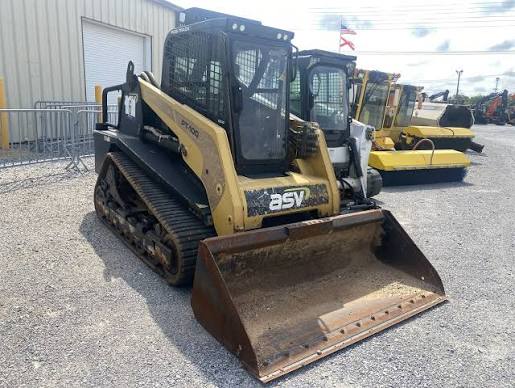

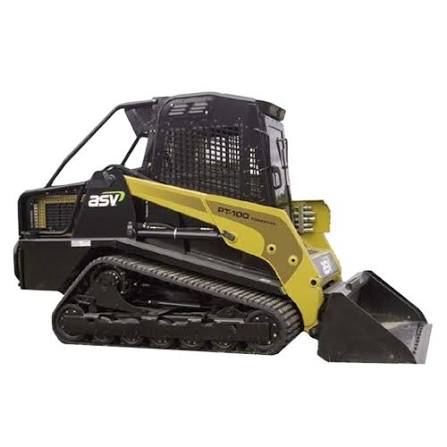

ASV PT-100 Compact Track Loader
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,150 lb
Max Speed - high range11.5 mph
Max Speed - low range6.0 mph
Fuel Capacity26.0 gal
Hydraulic System Fluid Capacity20.0 gal
Cooling System Fluid Capacity3.2 gal
Engine Oil Capacity2.2 gal

Engine

Engine specifications
Engine Model1104C-44LT
Displacement268 in³
Gross Power99.5 hp
AspirationTurbocharged
Peak Torque304 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow38.0 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab80 in
Width Over Tracks70 in
Length with Bucket149 in
Length - without Bucket118 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground73 in
Width of Track18 in
Number of Track Rollers per Side21
Ground Contact Area2,610 in³

Loader

Loader specifications
Tipping Angle7,600 °
Operating Load3,800 lb
